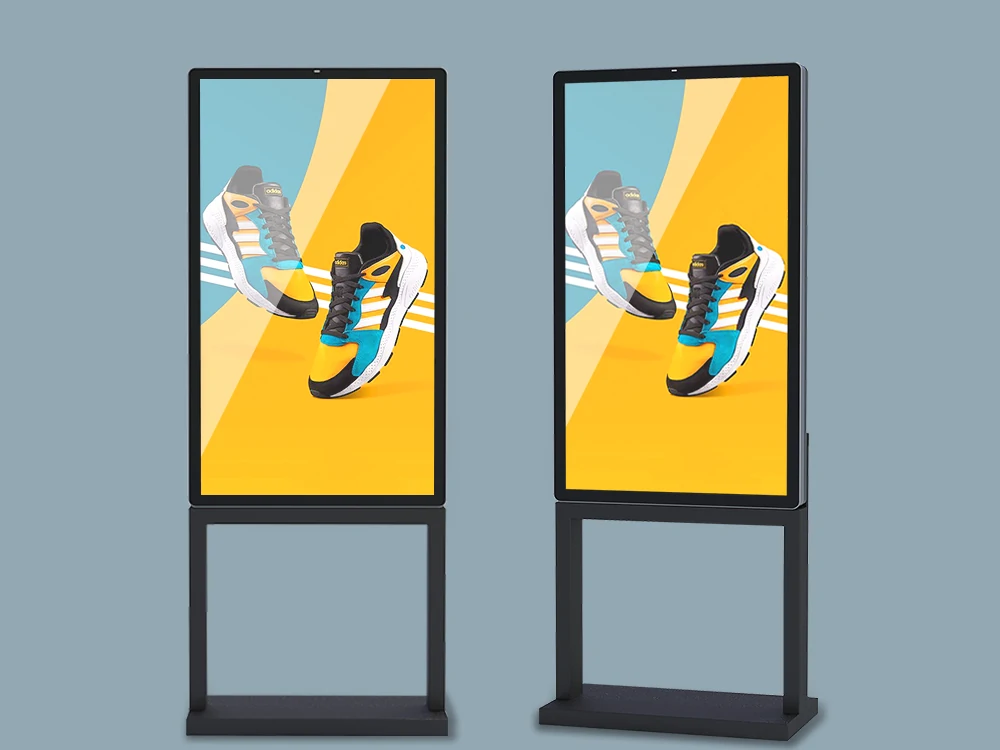

Screen totem waterproof IP66 outdoor


To meet the requirements of our customers, our team has researched and developed this product in digital advertising waterproof IP66, with a level of protection to ultra-high, housing is very durable and borderless, etc

  •  Sizes : 32" 43" 49" 55" 65"
  •  Brightness : 2500 nits
  •  Resolution : 1920*1080
  •  Installation: Support standing on the ground


You are interested ? then your wait is over !

“The display of the prices is not available, please contact us to make an estimate


Price exclusive of vat


La description Écran totem étanche / features

To meet the requirements of our customers, our team has researched and developed this product in digital advertising waterproof IP66, with a level of protection to ultra-high, housing is very durable and borderless, etc

Main features:

  • Technology of optical link screen fully fitted, ultra-narrow 38 mm, ultra-thin 98 mm thickness, super large screen accounts for 96 %
  • degree of protection IP66 degree explosion-proof IK10
  • Resistance to high temperature industrial screen high brightness

Digital signage waterproof IP66 outdoor

32” 43” 49” 55” 65”

Protection IP66

Impervious to water, dust, photoprotection, lightning, shock, corrosion, theft

Screen ultra-clear FHD range of colors 100 %

The image quality is professional, which can display bright colors to more accurately and adapt to all kinds of environments

Horizontal and vertical display available

The screen mode horizontal mode and vertical screen can be switched according to the needs

Support for multiple screens shared

Support split-screen mode through the software, backup, export-import ADS

Digital signage outdoor ultra-slim IP66

It is lighter, thinner and more beautiful than the screens outdoor traditional.

Technology of optical link full

Adopt the technology of optical link complete, more energy-efficient and more elegant than traditional models, with a better view.

Light sensor smart

Can automatically adjust the brightness of the LCD screen according to the brightness of the external light, in order to minimize the energy consumption, save energy and protect the environment

Structure design of ventilation quality

Adopts a structure design of ventilation of military grade. When the temperature of the
machine increases, it can cool down quickly without affecting the use of the screen.

LCD screen

Adopt an LCD screen resistant to high temperatures and high-quality components,
the LCD display can operate at a maximum temperature of 110 ℃, the finished product can operate at a maximum temperature of 70 ℃

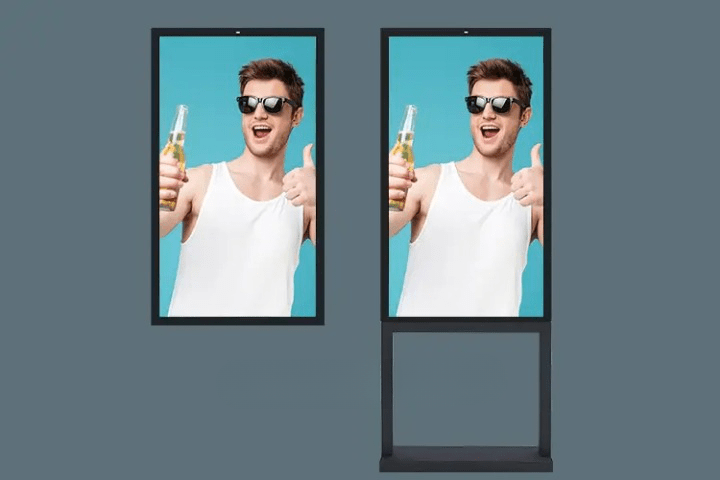

The 2 methods to install the wall hanging and the support on the foot

An image quality, which can display bright colors with more precision, and adapt to more of field

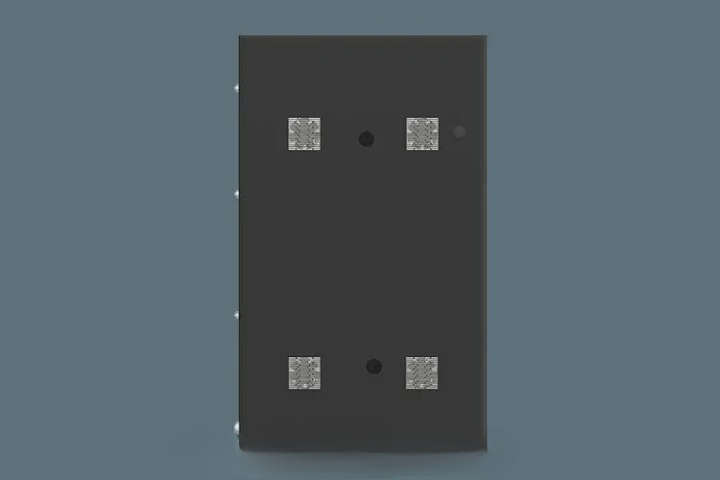

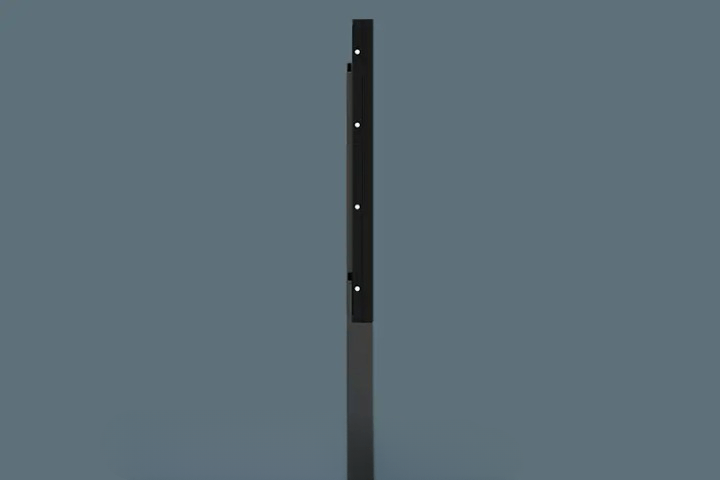

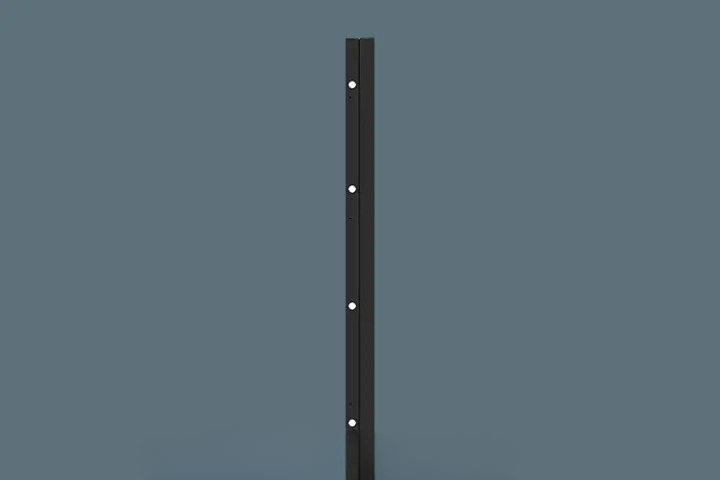

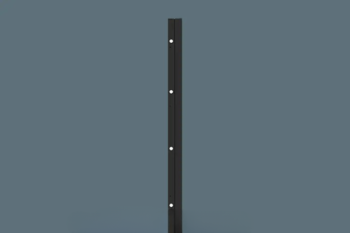

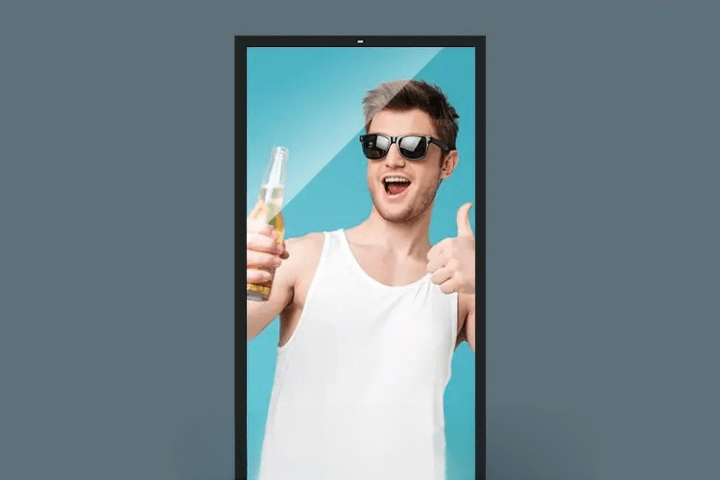

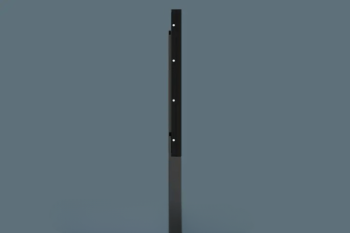

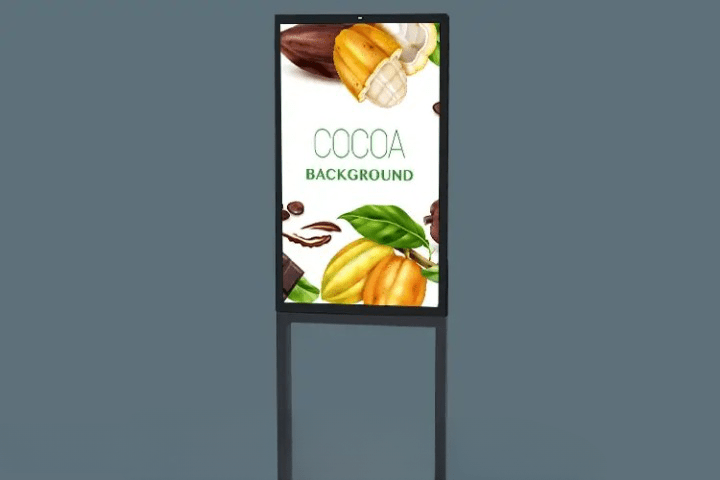

Product Photos

Popular Applications

PanelDisplay size (inch)32"43"49"55"









Active display area(mm)




1073.5(H) x




Aspect Ratio16:0916:0916:0916:09
Contrast ratio (Typ.)2000:1
Angle of view (H/V)178/178
Color16.7 M
Response time (G to G)6ms
Opening hours24/7
SoundSpeaker5W, 8Ω (2 games)
Current SourceAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power consumptionMax[W/h]130W180W260W300W
Standby Modeless than 0.5 W
Stopless than 0.5 W



Glass protectionGlass anti-reflection AR
Life of the housing8 years
IP rateIP66
Classification anti-hazardIK10
Media TypeWall / Ceiling / Freestanding
EnvironmentOperating temperature-30°C ~ 80°C
Storage temperature-30°C ~ 55°C
operating humidity10 % ~ 80 %
Storage humidity5% ~ 98%
Cooling systemTurboventilateur powerful and flow fan cross/air conditioning (optional)
ISMedia player AndroidProcessorRockchip® RK3288 (1.8 GHz, four cores)
GlowMEM 8G
local area networkEthernet 10M/100M (screen network version only)
External memory8gb SD card (up to 32gb)
MultimediaVideo (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG)
Resolution media1920*1080
Wi-fiEthernet 802.11 b/g/n (screen network version only)
System operatorAndroid 7.1
AccessoriesIncludedScheduling software, Remote control, Key, power Cable, SD Card, wall mount
Quality Assurance1 year
Type of packagingCardboard box/box with honeycomb + wooden crate
