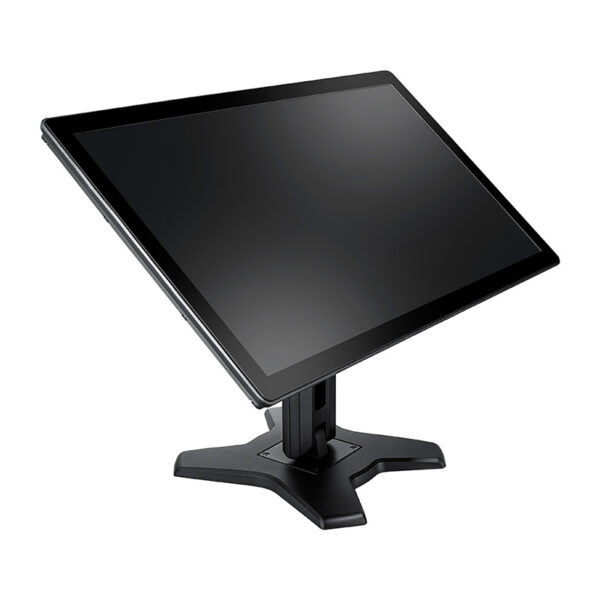

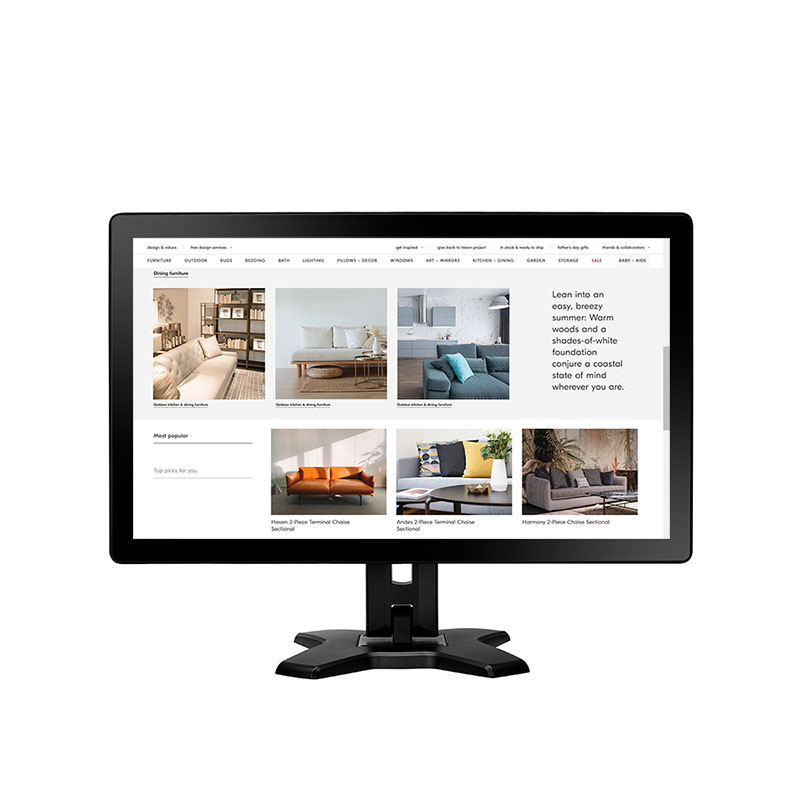

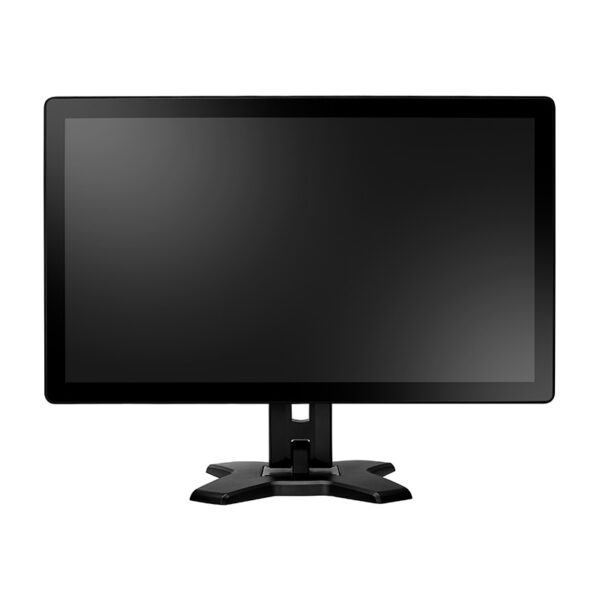

TX-2401 – Moniteur à écran tactile 24″

TX-2401

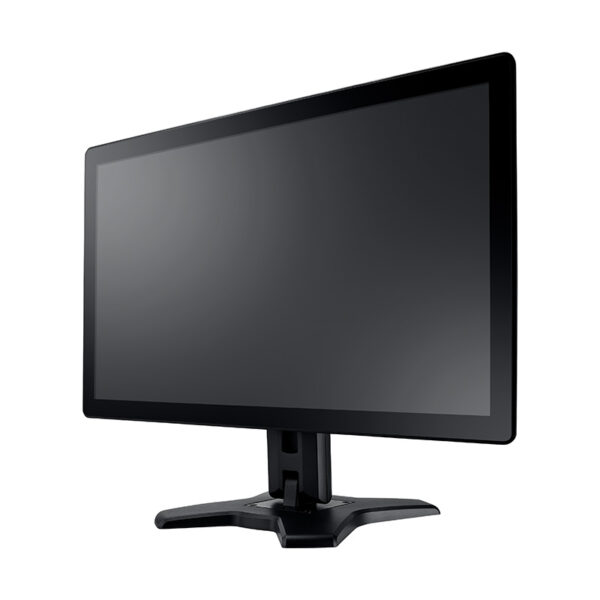

Touch screen monitor 24 inch 1080p with metal housing

  • Resolutions FHD 1920 x 1080
  • Touch technology projected capacitive 10 points
  • Versatile connectivity : signal inputs VGA, HDMI, DisplayPort
  • Ready for Windows 10 – support plug and play for Windows 7/8/10
  • Designed and developed for continuous operation 24h/24 and 7d/7

816,00

Price exclusive of vat

Description

The touch screen monitor TX-2401 adopts touch technology PCAP, which is relatively insensitive to surface contaminants and allows touch capabilities to 10 points, offering a tactile experience precise and responsive. It reacts the same to latex gloves. With a connectivity DisplayPort input, HDMI and VGA, touch screen TX-2401 is designed for flexible use, such as automatic recording, the automatic order-taking, the signaling paths without end and price verification. The screen provides more clues to IP65 and IK08, a metal housing and a tempered glass 7H edge-to-edge, which improves the durability for continuous operation in public spaces and high-traffic.

TOUCH SCREEN, PCAP 10 POINTS

The touch screen TX-2401 adopts touch technology PCAP with touch capabilities to 10 points who are insensitive to contamination, offering a tactile experience for fast, accurate, and responsive. The touch experience fluid is identical to that of smartphones and tablets, with similar reactivity to latex gloves

utilisation de gants en latex possible sur écran tactile

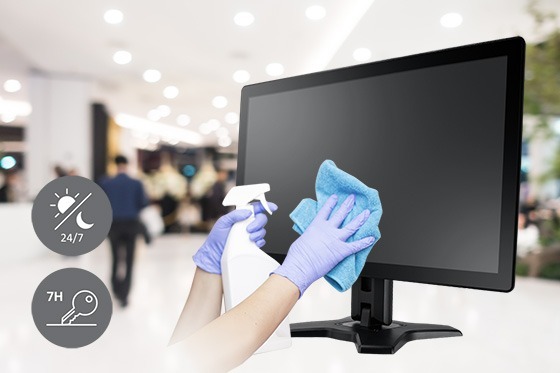

EASY TO MAINTAIN FOR USE NON-STOP

A slab of commercial-grade, high-quality components and a tempered glass screen 7H scratch-resistant to ensure a usability of the screen 24 hours on 24, 7 days on 7. In addition, the screen is resistant to chemical disinfectants such as alcohol for cleaning.

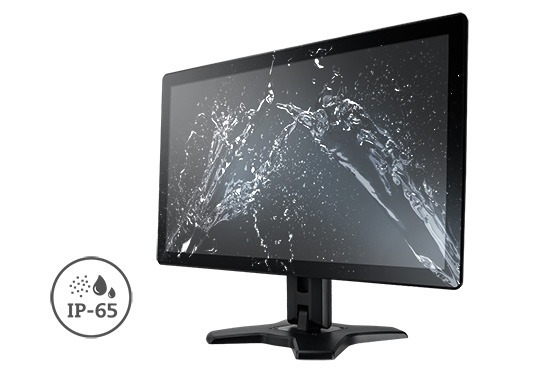

FACADE WITH IP65 PROTECTION AGAINST DUST AND WATER

The monitor, multi-touch TX-2401 with a front IP65 is designed to protect from dust and liquid spills, which makes it ideal for public places with high traffic.

protection contre la poussière et l'eau
protection contre les chocs et le vandalisme

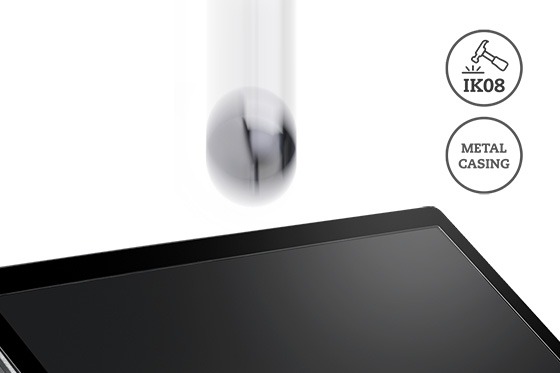

SHOCK-RESISTANT AND VANDAL-PROOF

The touch screen with an index IK08 and a metal housing prevents damage caused by the shock, or the acts of vandalism in crowded places, which ensures a long service life.

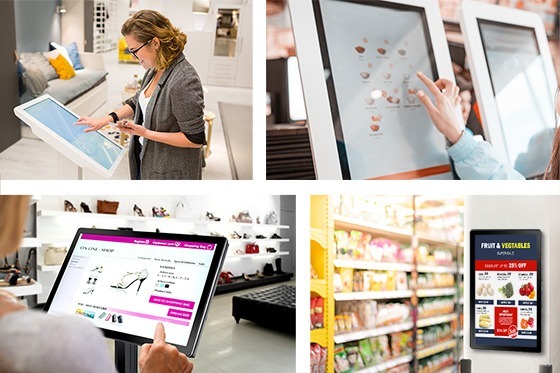

SEVERAL PROVISIONS FOR PUBLIC ACCESS

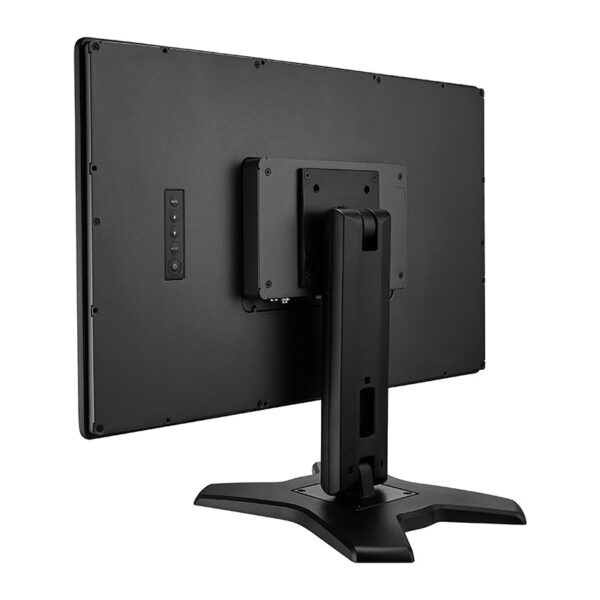

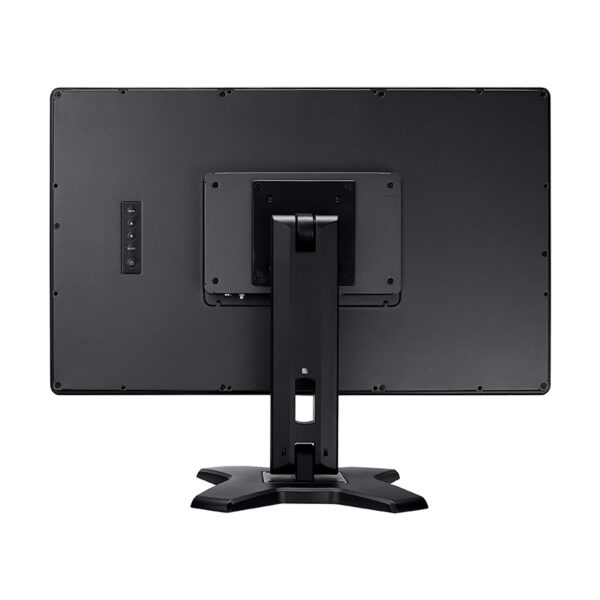

Thanks to the compatibility VESA, TX-2401 provides flexible mounting options, including the desktop mounting, wall mounting or mounting on a monitor arm. The ergonomic support provided allows adjusting the tilt of -2 degrees to 180 degrees, thus allowing greater flexibility of visualization use. The screen has a viewing angle the wide 178 degrees in order to ensure consistent color for better visualization.

multiples dispositions possible

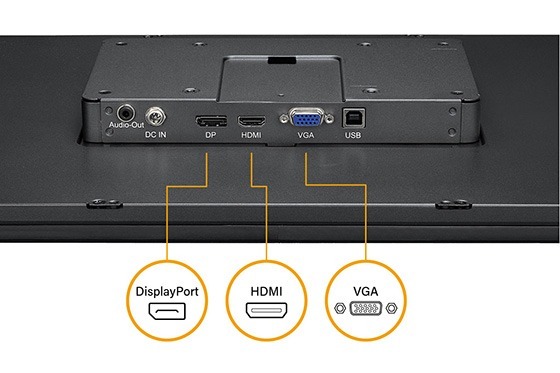

CONNECTIVITIES VERSATILE

The TX-2401 provides maximum versatility and allows users to connect to their own devices, be it a PC or media player, high performance, using inputs DisplayPort, HDMI, or VGA

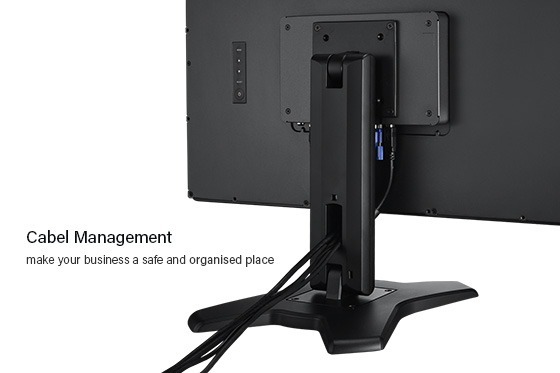

CABLE MANAGEMENT

A floor monitor specially designed with a built-in cable management helps keep them organized, to ensure that they do not interfere when adjusting the screen and create an open space.

SEAMLESS INTEGRATION

Support for touch works with a variety of operating systems, compatible with Windows, Linux, macOS, and some versions of Android. This allows a greater choice of what operating system that you use.

Display

Screen Type / WILL
Screen size / 23,8″
Resolution / FHD 1920 x 1080
Pixel / 0,274 mm
Brightness / 250 cd/m2
Contrast native / 3000:1
View Angle (left/right
high - /low) / 178°/178°
Display color / 16.7 M
Range of colours / NTSC 72 %
Response time / 5 milliseconds
Surface treatment / Seriesant1-Glare Treatment (Haze 40%), 3H Hard Coating

Frequency

Frequency (H) / 30kHz-84kHz
Frequency (V) / 56Hz-76Hz

Signal input

DisplayPort / 1.2 ax 1
HDMI / 1,3 × 1
VGA / D-Sub 15-pin x 1

His

/Audio output Jack stereo audio (3.5 mm)

Touch screen

Technology / Capacitive projective
Positioning accuracy / ±2.5 mm
Interface panel / USB (type B)/service port
Plug & Play multi-touch
Touch 10 points for Windows® 7、8、10
Prise en charge d’une seule touche par le pilote
Windows VISTA/XP/2000/CE/XP embedded, Mac OS 10.10-10.14
Supports multi-touch with driver
Linux 2.6.36 later/3.xx/4.xx/5.xx、 Android 2.3 and up

Power supply

Power Source / External
Exigences d’alimentation /DC 12V 2.5 A
On / 17 watts (on)
Standby Mode / < 0,4 W
Stop Mode / < 0,2 W

Glass

Thickness / 3,3 mm (0,13″)
Transmission rate / ≥85%
Hardness / ≥7H

Operating conditions

Temperature / 0°C-40°C (32°F-104°F)
Humidity / 20%-80% (non-condensing)

Storage Conditions

Temperature / -20°C-60°C (-4°F-140°F)
Humidity / 10%-90% (non-condensing)

VESA wall mount

VESA FPPMMI / Yes (100 x 100 mm)

Dimensions

Product with stand (W x H x d)
575,1 x 451,3 x 279,7 mm (22,6″ x 17,8″ x 11,0″)
Product without stand (W x H x d)
575,1 x 347,0 x 42,4 mm (22,6″ x 13,7″ x 1,7″)
Packaging (L x H x P)
370,0 x 530,0 x 660,0 mm (14,6″ x 20,9″ x26,0″)

Weight

Product with Stand / 7.8 kg (17.2 as books)
Product without base / 5,7 kg (12,6 books)
Packaging / 11.4 kg (25,1 books)

Certificate

Certifications and compliance
THIS
LVD
WEEE
RoHS
REACH
EAC
UKCA

Accessories

Provided
HDMI cable
Adapter
secteur Cordon d’alimentation
Quick start Guide
USB cable
VGA
Warranty card

Optional accessories

Wall mount (landscape only)
PMK-01
WMK-01
WMK-03

Additional information

Color

Black

Brightness

250 cd/m2

Resolution

1920×1080

Size

24"
