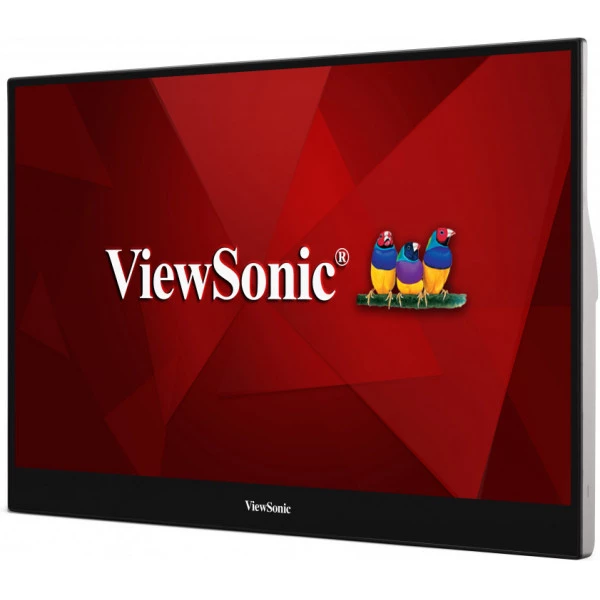

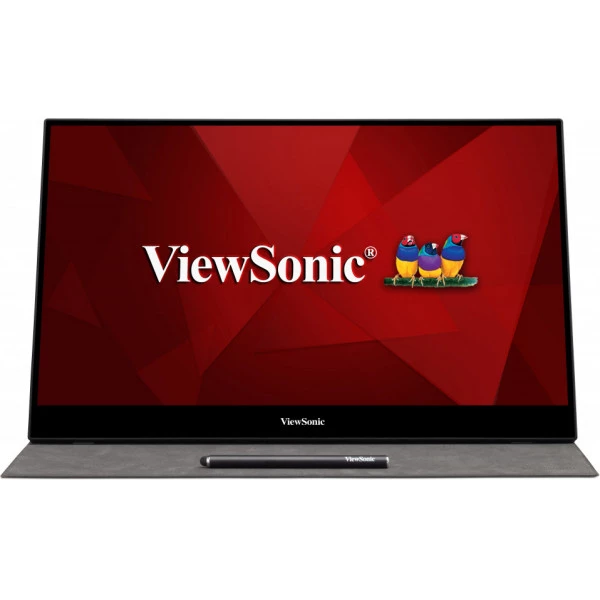

TD1655 – Portable Monitor Touch 16 inch


✔ Share your content from computers and mobile devices

✔ Solution to single cable to the video stream, the load and the tactile feedback

✔ Display Configuration flexible – work from any angle

✔ Compact size, light weight, and easily portable

✔ Durable and robust design



Share your content from your mobile devices

Broadcast your screen wherever you are through your laptop, tablet or phone with USB type-C built-in. It is compatible with Windows, Android, Chrome, MacOS, iOS and iPadOS*. Make sure your laptop, tablet, or smartphone has a USB type-C integrates all the functionality *** taking charge of the mode DisplayPort 1.2, and the power supply.

Anywhere with computers, laptops, tablets, and phones

Screen remote and simultaneous charging

Stream the screen of your mobile device on a larger screen and a load (up to 60 W) via one of the USB ports Type C while feeding from a powerbank / external power supply on the other port.

Flexible Configuration with 2 x USB Type-C

Retour tactile TD1655

The control on a large touch screen allows you to respond more intuitive and more effective. The pen touch the magnetic provided lets you draw and write your notes without leaving traces of your fingers.

Size, portable for work and leisure

Screen is 16 inches wider than most laptops currents and weighing less than 1 kg. It will team perfectly fits your mobile workplace and can be used for the media during a break.

16” Display,
< 1 KG,

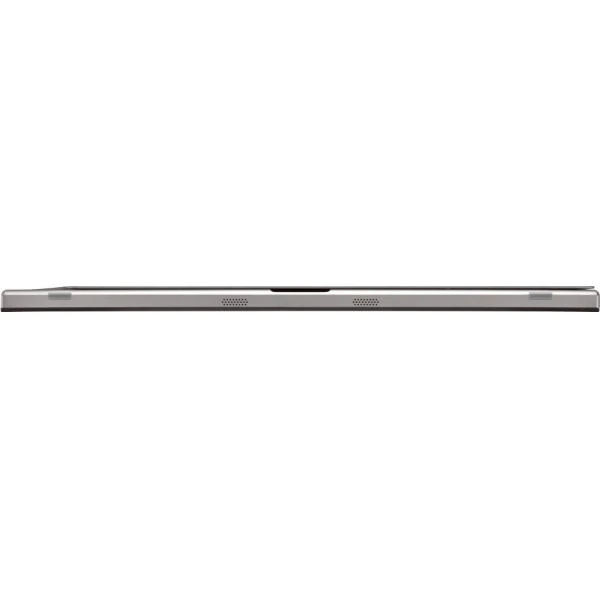

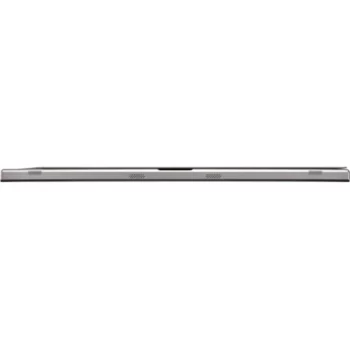

< 1 CM

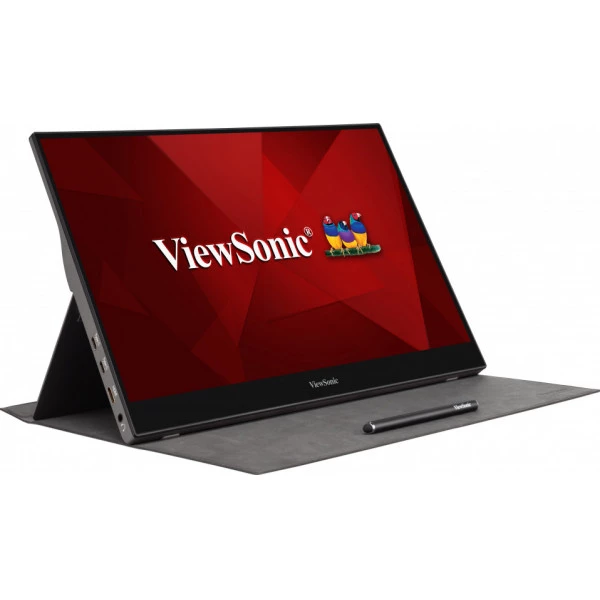

Work according to your angles favorite

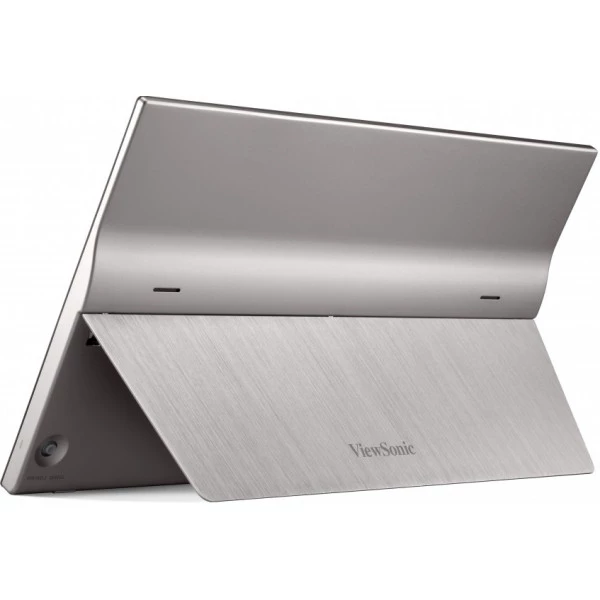

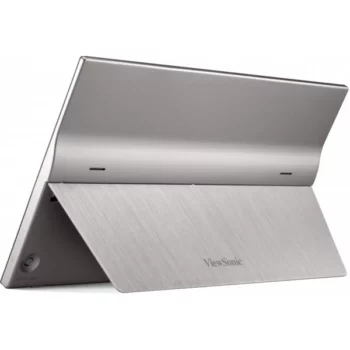

Adjust as a multitude of viewing angles thanks to the built-in support.

Tilt up to 60 degrees

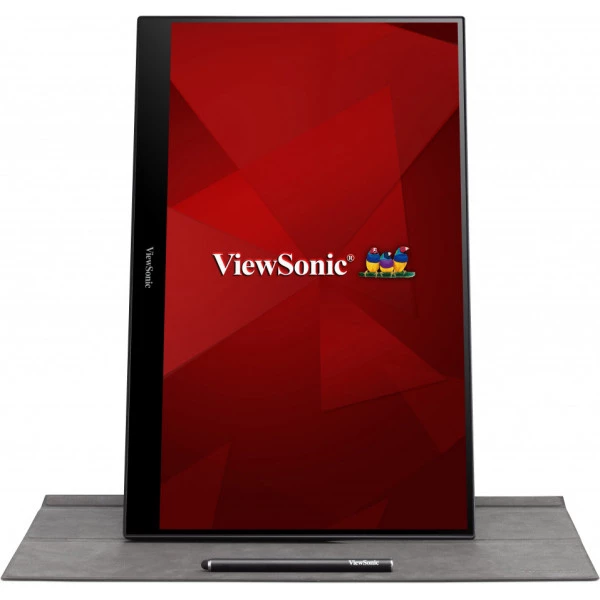

Orientation vertical

In addition to the horizontal orientation usual, you can position the screen to the vertical for the analysis of tables, programming, photo editing, games, etc

Display swivel

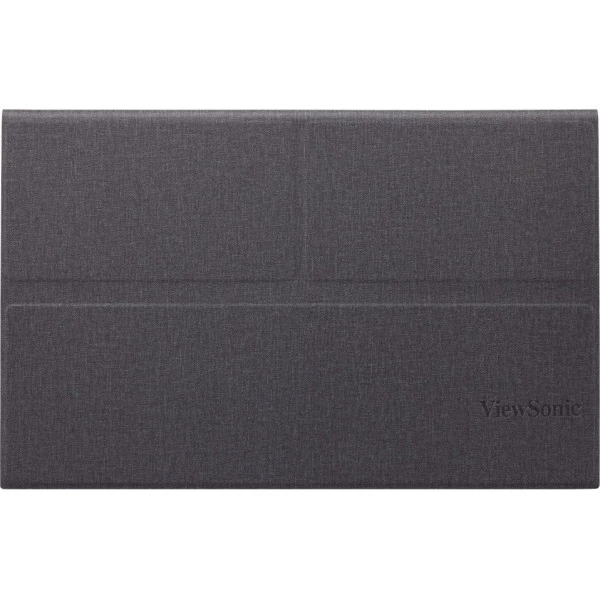

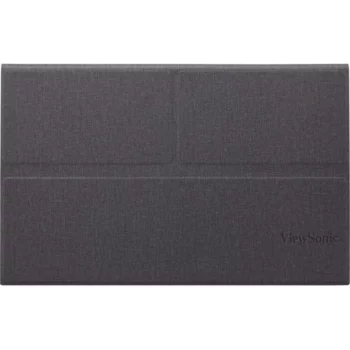

Rabat et tapis magnétiques TD1655

Avoid the damage during the transport, the flap removable magnet is easy to put on. Used as a rug, non-slip surface prevents the monitor from sliding.

Flap non-slip

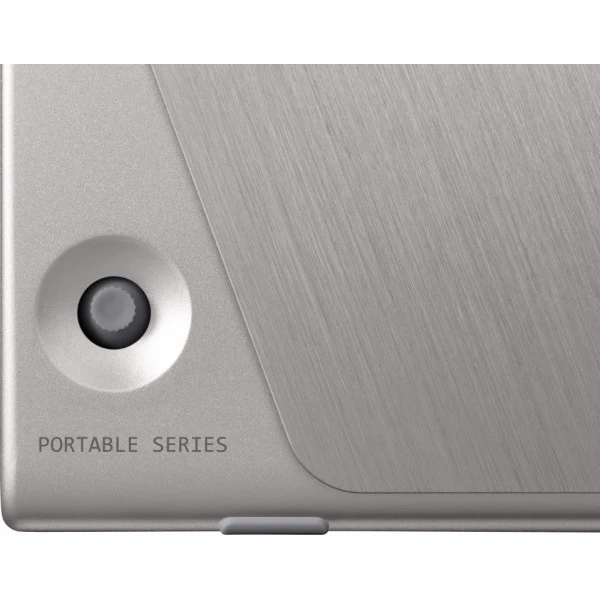

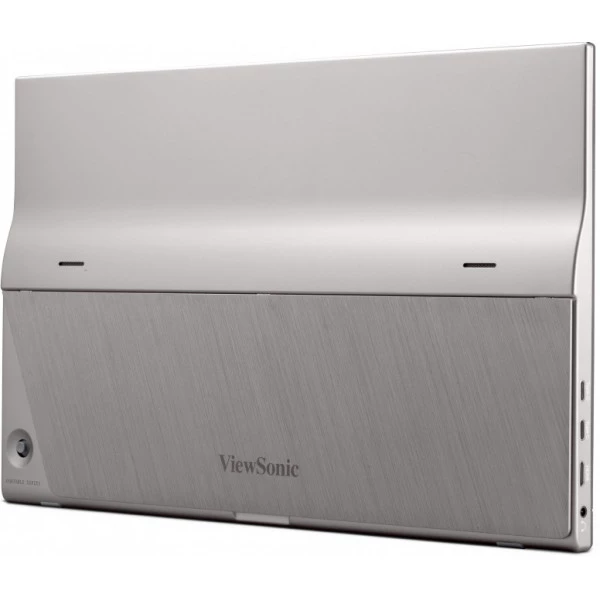

Design a block

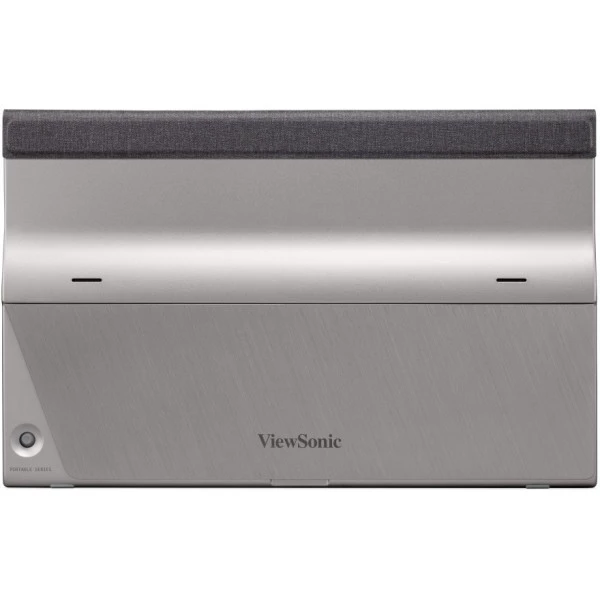

With the metal housing and the hinge endurance, support aluminum foldable fact of the whole monitor a design into a block.

Metal enclosure and aluminum mounting bracket

Touch screen anti-scratch

Hardness of the screen 6 o'clock built-in, screen resistant to surface damage, even if it is accidentally scratched by your keys.

Hardness of the screen 6 AM

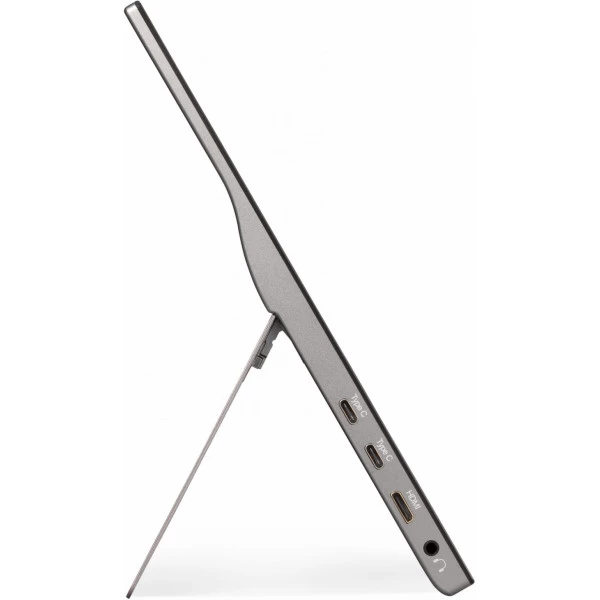

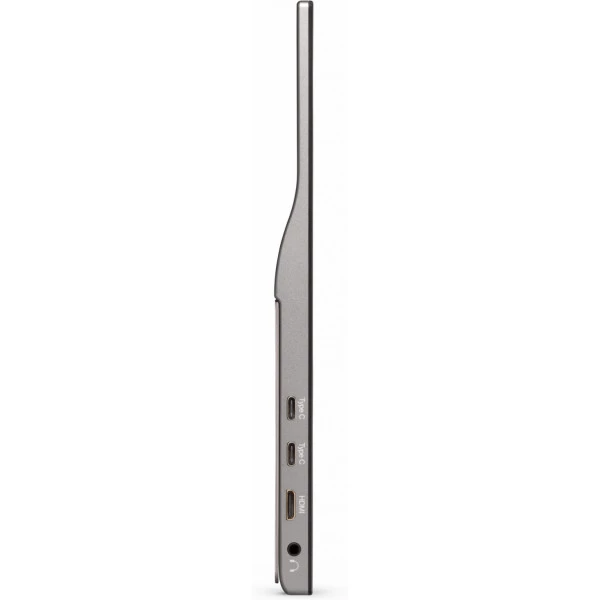

Dimensions & Input/Output Ports

  1. USB Type-C x2
  2. Mini HDMI
  3. Audio Output


Ecran TD1655

  • Display size (in.): 16
  • Viewable area (in.): 15.6
  • Type of tile: IPS technology
  • Resolution: 1920 x 1080
  • Resolution: FHD
  • Static Contrast ratio: 800:1 (typ)
  • Dynamic Contrast ratio: 50M:1
  • Backlight: LED
  • Brightness: 250 cd/m2 (typ)
  • Color: 262K
  • Support for color space: 6 bit true
  • Display Ratio: 16:9
  • Response time (GTG): 6.5 ms
  • Response time (GTG w/OD): 6.599 ms
  • Response time (Tr+Tf): 30ms
  • Angles of vision: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
  • Backlight life (Hours): 15000 Hours (Min)
  • Curvature: Flat
  • Refresh rate (Hz): 60
  • Filter blue light: Yes
  • No flickering: No
  • Color range: NTSC: 45% size (Typ), sRGB: 64% size (Typ)
  • Pixel size: 0.179 mm (H) x 0.179 mm (V)
  • Touch Screen: Projected capacitance, 10-point multi-touch
  • Surface treatment: Finish with anti-fingerprints, hardened coating (≧6H)
  • Thickness of the protective glass: 0.8 mm

Compatibilité TD1655

  • PC resolution (max): 1920×1080
  • Resolution Mac® (max): 1920×1080
  • Operating system PC: Certified Windows 10; tested macOS
  • Mac® Resolution (min): 1920×1080

Connectivité TD1655

  • USB 3.1 Type-C: 2
  • Audio output 3.5 mm: 1
  • Mini HDMI: 1
  • Input power: Power extene

Audio TD1655

  • Internal speakers: 0.8 Watts x2

Alimentation TD1655

  • Eco Mode (standard): 6W
  • Eco Mode (optimized): 6.9 W
  • Consumption (standard): 8W
  • Consumption (max): 8.3 W
  • Voltage: AC 100-240V, 50/60 Hz
  • Standby: 0.5 W
  • Power supply: External


  • Physical controls: Top, Right, Bottom, Left, Power
  • Screen display: Input selection, Audio Setting, ViewMode, Color Adjustment, manual Adjustment of the image Setup Menu

Operating Conditions

  • Temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity (without condensation): 20% to 90%

Input Signal

  • Horizontal Frequency: 15 ~ 82KHz
  • Vertical Frequency: 50 ~ 75Hz

Video Input

  • Digital synchronization: TMDS – mini HDMI (v1.4), Micro-Packet – Type C


  • Tilt (Front/Rear): 20º / 60º

Weight (Imperial)

  • Net (lbs): 2.1
  • Net without stand (lbs): 2.1
  • Gross (lbs): 5.1

Weight (metric)

  • Net (kg): 1
  • Net without stand (kg): 1
  • Gross (Kg): 2.3

Dimensions (imperial) (wxhxd)

  • Packaging (in.): 17.3 x 11.3 x 3.5
  • Physical (in.): 14 x 8.8 x 0.6
  • Physical without stand (in.): 14 x 8.8 x 0.6

Dimensions (metric) (wxhxd)

  • Packaging (mm): 440 x 288 x 89
  • Physical (mm): 355 x 223 x 16
  • Physical without Stand (mm): 355 x 223 x 16


  • Contest rules: cTUVus, FCC-B, ICES-003, Energy Star, EPEAT, CEC, NRCan, MX-CoC, Mexico Energy
    PACKAGE CONTENTS: TD1655 x1, Cable mini HDMI to HDMI (v1.4; Male-Male) x1, USB Cable Type-C (Male-Male) x1, USB Cable Type-C to Type-A 3.2 Gen1 (Male-Male) x1, Power x1, quick start Guide x1, Flap protection x1, cleaning Cloth x1, Pen, passive touch x1
    Recycle/Dispose Of: Please recycle in accordance with local legislation, federal or government by force.
    Warranty: *Warranty offered may vary from one market to another
    Power management: Energy Star standards, EPEAT
