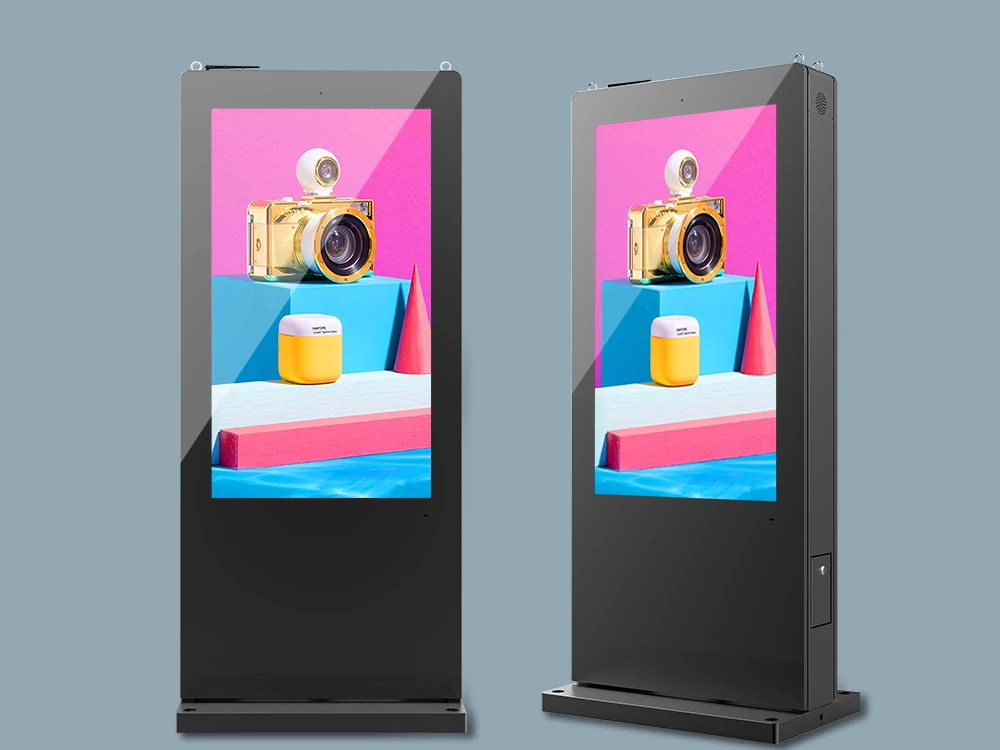

Smart kiosk / totem outside
Features Smart kiosk
Our kiosk/totem outdoor is IP65 dust-tight and water, it has a high brightness of 2000 ~ 3000 nits for outdoor use, it is designed specifically to withstand the weather, and to work in the heat, cold, rain, snow and dust. These kiosks/totems digital remotes have an ultra slim design for maximum impact on the screen without distraction.
- Sizes : 32" 43" 49" 55" 65" 75" 86"
- Brightness : 2000~3000 nits
- Resolution : 1920*1080
- Type : Kiosk / Totem
You are interested ? then your wait is over !
“The display of the prices is not available, please contact us to make an estimate “
Price exclusive of vat
Description
Description / features
Our kiosk/totem outdoor is IP65 dust-tight and water, it has a high brightness of 2000 ~ 3000 nits for outdoor use, it is designed specifically to withstand the weather, and to work in the heat, cold, rain, snow and dust. These kiosks/totems digital remotes have an ultra slim design for maximum impact on the screen without distraction.
Our exterior digital signage can help you to :
- Maximize your return on investment on marketing and advertising.
- Provides a lower total cost of ownership over the life of the enclosures.
- The open Solution – Replace, upgrade, or modify the equipment in case of need.
- Performance – Peace-of-mind Efficiency for intensive applications 24h/24 and 7d/7.
- Support profitable advertising.
Smart kiosk / totem outside
Sizes : 32" 43" 49" 55" 65" 75" 86"
8 types of protection functions
Waterproof / Dust-proof / explosion-proof / Anti-glare / Anti-theft /
Lightning Protection, anti-corrosion / Anti-leakage electric
Glass explosion-proof
Le verre trempé de haute qualité de 4 mm à 6 mm peut résister à des chocs violents et protège l’écran.
Protection stable IP65
Adopt an LCD screen, waterproof and high-quality components
Temperature control built-in
The air conditioning system of internal allows the screen to be used permanently in an outdoor environment. Internal fans keep the panel and other internal components at an optimal operating temperature, guaranteeing a long service life and reliable to your screen.
Structure design of ventilation quality
Adopts a structure design of ventilation of military grade. When the temperature of the
machine increases, it can cool down quickly without affecting the normal use
Interactive Performance-fantastic
Adjust the touch screen PCAP sensitive to 10 points to bring you performance touch-sensitive
Support for multiple functions split screen
Multiple screen modes-shared, videos and images can be read at the same time
Display ultra-high brightness
2000 ~ 3000nits high brightness and performance of work 24 * 7, visible in direct sunlight, which is an outward display that is readable in the sun
Intelligent control of the brightness sensor
peut régler automatiquement la luminosité de l’écran LCD en fonction de la luminosité de la lumière externe.
in order to minimize the energy consumption, save energy and protect the environment
Support long hours of work
Adapt high-quality components, support 24/7 hours
uninterrupted work, life of 60,000 hours
System Android or Windows
We provide operating systems flexible according to different applications
product details
Popular Applications
| Panel | Display size (inch) | 43" | 49" | 55" | 65" | 75" | 86" | |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840*2160 | 3840*2160 | ||
| Active display area(mm) | 941.2×529.4 | 1073,5 x 603,0 | 1209,6 x 680,4 | 1428,5 x 803,5 | 1650,3 x 928,3 | 1938,2 × 1098,3 | ||
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | ||
| Brightness(cd/m2) | 2000nit | 2000nit | 2500nit | 2500nit | 2500nit | 2500nit | ||
| Contrast ratio (Typ.) | 1000:1 | 1000:1 | 2000:1 | 2000:1 | 3000:1 | 3000:1 | ||
| Angle of view (H/V) | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | ||
| Color | 16.7 M | 16.7 M | 16.7 M | 16.7 M | 16.7 M | 16.7 M | ||
| Response time (G to G) | 6ms | 6ms | 6ms | 6ms | 6ms | 6ms | ||
| Opening hours | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | ||
| Sound | Speaker | 5W, 8Ω (2 games) | 5W, 8Ω (2 games) | 5W, 8Ω (2 games) | 5W, 8Ω (2 games) | 5W, 8Ω (2 games) | 5W, 8Ω (2 games) | |
| Power | Type | Internal | Internal | Internal | Internal | Internal | Internal | |
| Current Source | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | |||||||
| Power consumption | Max[W/h] | 100 | 120 | 150 | 260 | 280 | 360 | |
| Standby Mode | less than 0.5 W | less than 0.5 W | less than 0.5 W | less than 0.5 W | less than 0.5 W | less than 0.5 W | ||
| Stop | less than 0.5 W | less than 0.5 W | less than 0.5 W | less than 0.5 W | less than 0.5 W | less than 0.5 W | ||
| Specification mechanical | Glass protection | Yes | Yes | Yes | Yes | Yes | Yes | |
| Media Type | Foot Support | Foot Support | Foot Support | Foot Support | Foot Support | Foot Support | ||
| Environment | Operating temperature | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | |
| Storage temperature | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | ||
| operating humidity | 10 % ~ 80 % | 10 % ~ 80 % | 10 % ~ 80 % | 10 % ~ 80 % | 10 % ~ 80 % | 10 % ~ 80 % | ||
| Storage humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | ||
| Cooling system | Turboventilateur powerful and flow fan cross/air conditioning (optional) | |||||||
| Protection against hypothermia | Heating (heater aluminium sheet) (option) | |||||||
| IS | Media player Android | Processor | Rockchip® 3288 (1.8 GHz, quad-core) | |||||
| RAM | 2G | |||||||
| Glow | MEM 8G | |||||||
| USB | HOST USB2.0 (X2) | |||||||
| local area network | Ethernet 10M/100M (screen network version only) | |||||||
| External memory | 8gb SD card (up to 32gb) | |||||||
| Multimedia | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG) | |||||||
| Resolution media | 1920*1080 | |||||||
| Wi-fi | Ethernet 802.11 b/g/n (screen network version only) | |||||||
| System operator | Android 7.1 | |||||||
| Certificate | Security | CE ROHS IP65 | ||||||
| Accessories | Included | Scheduling software, Remote control, Key, power Cable, SD Card | ||||||
| Quality Assurance | 1 year | |||||||
| Type of packaging | Cardboard box/box with honeycomb + wooden crate | |||||||
