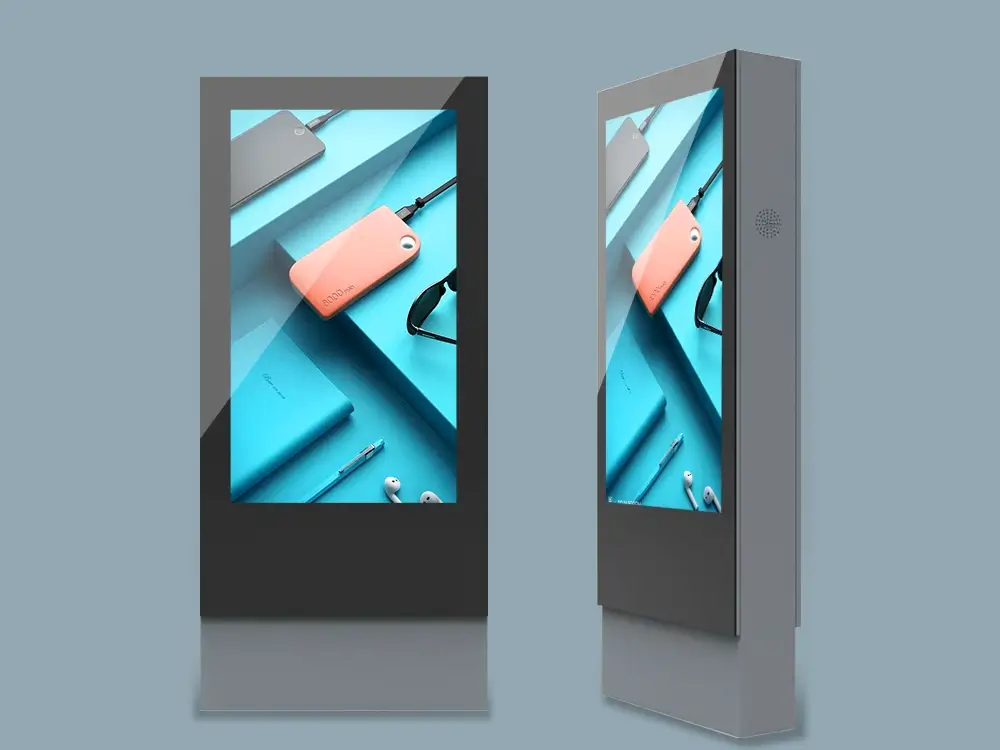

Smart Kiosk advertising outdoor waterproof IP65

Features Smart Kiosk

Our kiosk/totem outdoor is IP65 dust-tight and water, it has a high brightness of 2000 ~ 3000 nits for outdoor use, it is designed specifically to withstand the weather, and to work in the heat, cold, rain, snow and dust. These kiosks/totems digital remotes have an ultra slim design for maximum impact on the screen without distraction.

  •  Sizes : 32" 43" 49" 55"
  •  Brightness : 2000~3000 nits
  •  Resolution : 1920*1080
  •  Installation: Kiosk / Totem



You are interested ? then your wait is over !

“The display of the prices is not available, please contact us to make an estimate

Category

Price exclusive of vat

Description

The description outdoor advertising

Our kiosk/totem outdoor is IP65 dust-tight and water, it has a high brightness of 2000 ~ 3000 nits for outdoor use, it is designed specifically to withstand the weather, and to work in the heat, cold, rain, snow and dust. These kiosks/totems digital remotes have an ultra slim design for maximum impact on the screen without distraction.

Our exterior digital signage can help you to :

  • Maximize your return on investment on marketing and advertising.
  • Provides a lower total cost of ownership over the life of the enclosures.
  • The open Solution – Replace, upgrade, or modify the equipment in case of need.
  • Performance – Peace-of-mind Efficiency for intensive applications 24h/24 and 7d/7.
  • Support profitable advertising.

See the features

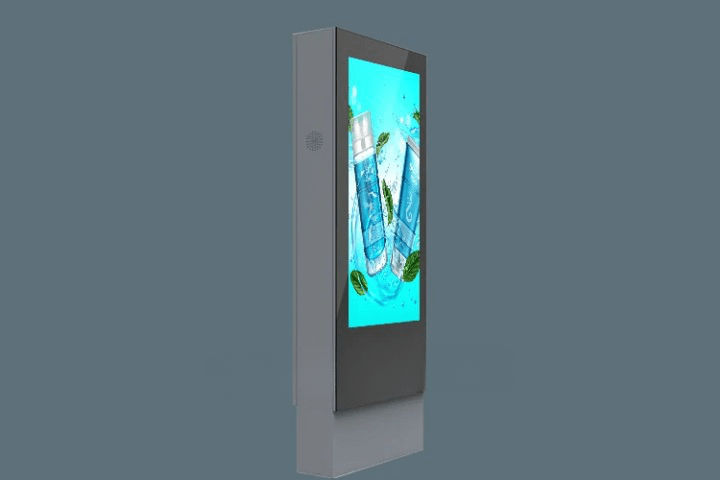

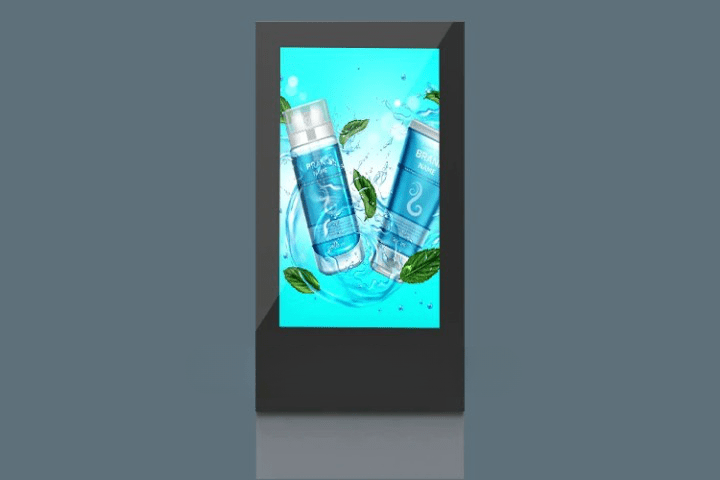

Totem digital outdoor waterproof IP65, perfect for outdoor advertising

Smart Kiosk with 8 types of protection functions

Waterproof / Dust-proof / explosion-proof / Anti-glare / Anti-theft /
Lightning Protection, anti-corrosion / Anti-leakage electric

Glass explosion-proof

The tempered glass of high quality 4 mm to 6 mm can withstand
shocks and protect the security of the display screen

Protection stable IP65

Adopt an LCD screen, waterproof and high-quality components

Temperature control built-in

The air conditioning system of internal allows the screen to be used permanently in an outdoor environment. Internal fans keep the panel and other internal components at an optimal operating temperature, guaranteeing a long service life and reliable to your screen.

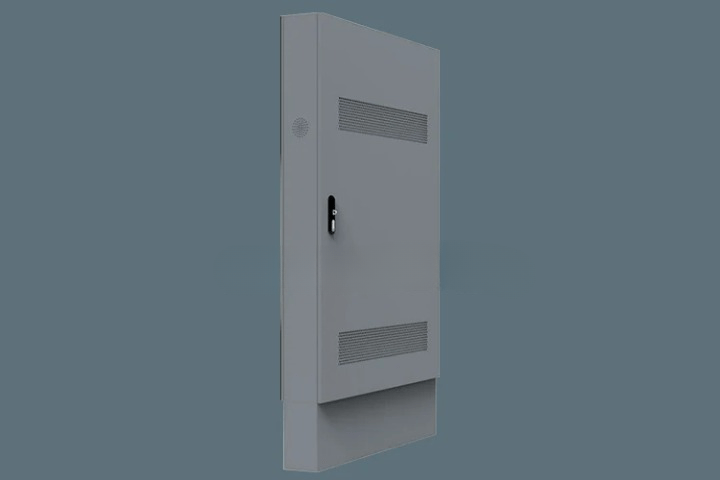

Structure design of ventilation military grade

Adopts a structure design of ventilation of military grade. When the temperature of the
machine increases, it can cool down quickly without affecting the normal use

Interactive Performance-fantastic

Adjust the touch screen PCAP sensitive to 10 points to bring you performance touch-sensitive

Support for multiple functions split screen

Multiple screen modes-shared, videos and images can be read at the same time

Display ultra-high brightness

2000 ~ 3000nits high brightness and performance of work 24 * 7, visible in direct sunlight, which is an outward display that is readable in the sun

Intelligent control of the brightness sensor

can automatically adjust the brightness of the LCD screen according to the
brightness of the external light.
in order to minimize the energy consumption, save energy and protect the environment

Support long hours of work

Adapt high-quality components, support 24/7 hours
uninterrupted work, life of 60,000 hours

System Android or Windows

We provide operating systems flexible according to different applications

product details

Popular Applications






PanelDisplay size (inch)43"49"55"65"
Resolution1920×10801920×10801920×10801920×1080
Active display area(mm)941.2×529.41073,5 x 603,01209,6 x 680,41428,5 x 803,5
Aspect Ratio16:0916:0916:0916:09
Brightness(cd/m2)2000nit2000nit2500nit2500nit
Contrast ratio (Typ.)1000:11000:15000:15000:1
Angle of view (H/V)178/178178/178178/178178/178
Color16.7 M16.7 M16.7 M16.7 M
Response time (G to G)6ms6ms6ms6ms
Opening hours24/724/724/724/7
SoundSpeaker5W, 8Ω (2 games)5W, 8Ω (2 games)5W, 8Ω (2 games)5W, 8Ω (2 games)
PowerTypeInternalInternalInternalInternal
Current SourceAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power consumptionMax[W/h]100120150260
Standby Modeless than 0.5 Wless than 0.5 Wless than 0.5 Wless than 0.5 W
Stopless than 0.5 Wless than 0.5 Wless than 0.5 Wless than 0.5 W
Specification mechanicalGlass protectionYesYesYesYes
Media TypeFoot SupportFoot SupportFoot SupportFoot Support
EnvironmentOperating temperature-30°C ~ 50°C-30°C ~ 50°C-30°C ~ 50°C-30°C ~ 50°C
Storage temperature-30°C ~ 55°C-30°C ~ 55°C-30°C ~ 55°C-30°C ~ 55°C
operating humidity10 % ~ 80 %10 % ~ 80 %10 % ~ 80 %10 % ~ 80 %
Storage humidity5% ~ 95%5% ~ 95%5% ~ 95%5% ~ 95%
Cooling systemTurboventilateur powerful and flow fan cross/air conditioning (optional)
Protection against hypothermiaHeating (heater aluminium sheet) (option)
ISMedia player AndroidProcessorRockchip® 3288 (1.8 GHz, quad-core)
RAM2G
GlowMEM 8G
USBHOST USB2.0 (X2)
local area networkEthernet 10M/100M (screen network version only)
External memory8gb SD card (up to 32gb)
MultimediaVideo (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG)
Resolution media1920*1080
Wi-fiEthernet 802.11 b/g/n (screen network version only)
System operatorAndroid 7.1
CertificateSecurityCE ROHS IP65
AccessoriesIncludedScheduling software, Remote control, Key, power Cable, SD Card
Quality Assurance1 year
Type of packagingCardboard box/box with honeycomb + wooden crate
