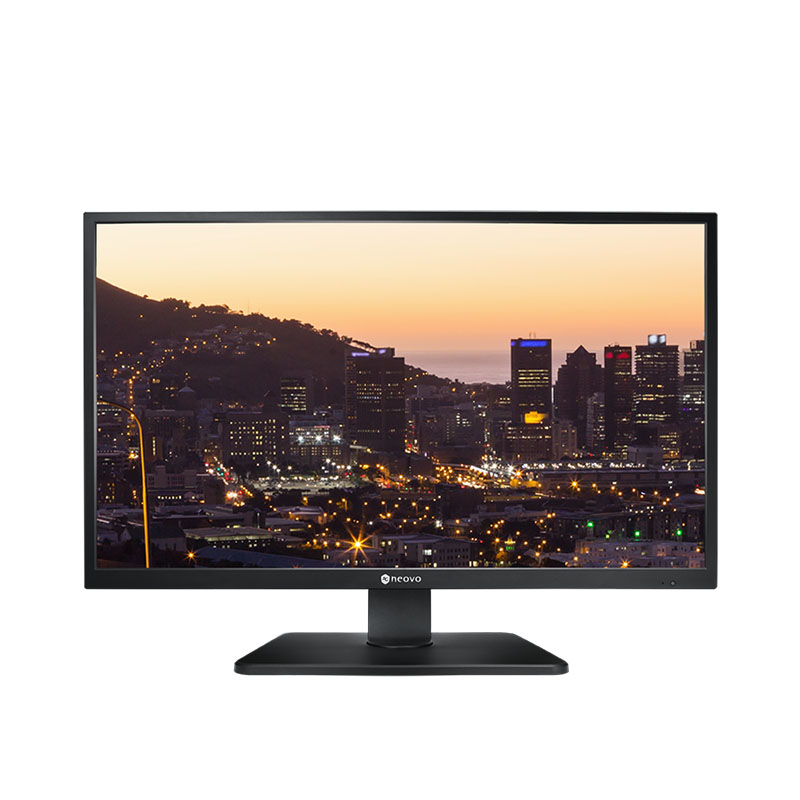

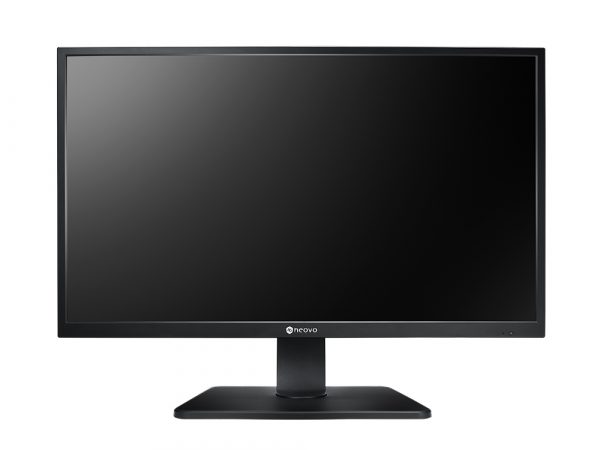

SC-32E – Moniteur de surveillance 32 pouces avec connecteur BNC

SC-32ND

Monitoring screen 1080p 32 inch with BNC connector

  • Full HD resolution 1920 x 1080
  • Versatile connectivity : VGA, HDMI, Composite (BNC)
  • Dual 2W speaker
  • Output Ports with passive loop-composite (BNC)
  • Picture Mode CCTV (closed circuit) for a very detailed and clear in low-light scenes
  • Designed and developed for continuous operation 24/7

575,00

Category

Price exclusive of vat

Description

Designed to work 24h/24 and 7d/7, the screens 32 inches monitoring of the SC series and have the technology Anti-Burn-in™, which prevents the retention of the image, while continuously operating in environments of security and surveillance. The series also benefits from improved image quality and control of parameters such as the selection of the gamma curve*the black level adjustment*the device of contrast enhancement* and the mode CCTV that can generate an image more rich-even in lighting conditions are unfavourable from surveillance footage in low-light conditions.

RELIABILITY OF PEAK

The SC series is designed specifically to meet the challenge of operating 24h/24 and 7d/7.

The advanced Anti-Burn-in™ AG Neovo also prevents the duplication of images during critical operations without interruption.

exemple de la technologie Anti-Burn-in
clarté d'image améliorée

CLARTÉ D’IMAGE AMÉLIORÉE

The monitor with images that are exceptionally bright with a selection of the curve gamma* in the foreground, and a possibility of adjustment of the black level* and a high dynamic contrast ratio of 20,000,000:1 : the SC series can capture details in dark and generate images on top of the range, thus improving the quality of image details.

A mode CCTV preconfigured has been developed specifically for the control room monitoring to adjust the video settings of the screen such as the sharpness, color temperature and brightness in order to maximize the clarity of the image, especially in the surveillance footage in low light at night.

ADAPTABLE TO THE NEEDS OF YOUR ENVIRONMENT

In a spirit of adaptability, the SC series offers a wide choice of configurations designed to allow you to tailor the display to your surveillance needs.

This includes on/off switches to the blue screen or the LED power* and aspect ratios selectable whose 16:9, 4:3, 1:1* or even a zoom mode custom allows you to adjust the display to the terms and conditions of your room control independently of the input signal.

disposition adaptable au besoin de surveillance

MANUFACTURER SPECIFICATIONS SC-32ND

Display

Screen Type / IPS
Taille de l’écran / 31,5″
Resolution FHD 1920 x 1080
Pixel pitch / 0,364 mm
Brightness 350 cd/m2
Contrast native / 20 000 000:1 (DCR)
View Angle (left/right
top/bottom) / 178°/178°
Display colors / 16.7 M
Range of colours / NTSC 72 %
Response time / 5 milliseconds
Surface treatment / Treatment antiglare (Haze 1%), hard coating 3H

Frequency

Frequency (H) / 30kHz-85kHz
Frequency (V) / 48Hz-75Hz

Signal input

HDMI / 1.4 x 1
DVI / 24-Pin DVI-D
VGA / D-Sub 15-pin x 1
Composite / BNC x 1

Signal output

Composite / BNC connector x 1

Other connectivity

USB / 2.0 x 1 (service port/media playback)

His

Audio input / Jack stereo audio (3.5 mm)
/Audio output Jack stereo audio (3.5 mm)
Internal speaker / 3W x 2

Power supply

Power Source / Internal
Exigences d’alimentation /AC 100 / 240 V / 50/60 Hz
On / 26 W (enabled)
Standby Mode / < 0,5 W
Stop Mode / < 0,3 W

Operating conditions

Temperature / 5°C-35°C (41°F-95°F)
Humidity / 20%-85% (non-condensing)

Storage Conditions

Temperature / -20°C-60°C (-4°F-140°F)
Humidity / 5%-85% (non-condensing)

VESA wall mount

VESA FPPMMI / Yes (100 x 100 mm)

Security

Kensington security slot / Yes

Dimensions

Product with stand (W x H x d) / 728,8 x 540,3 x 236,8 mm (28,7" x 21.3" x 9.3")
Product without stand (W x H x d) / 728,8 x 433,1 x 51,4 mm (28,7″ x 17,1″ x 2,0″)
Packaging (L x H x P) / 810,0 x 528,0 x 210,0 mm (31,9″ x 20,9″ x 8,3″)

Weight

Product with Stand / 8.1 kg (17.9 lbs)
Product w/o Base / 5.6 kg (12.3 lb)
Packaging / 10.5 kg (23.1 lb)

Certification

Certifications & Compliance / CE, FCC, LVD, WEEE, RoHS, REACH

Accessories

Audio cable
Batteries
Cordon d’alimentation
Quick start Guide
Remote control
VGA cable
Optional accessories
Ceiling Mount (Landscape only)
CMP-01 + LMK-02
CMP-01 + WMK-03
Wall Mount (Landscape only)
LMA-01
LMK-02
PMK-01
WMA-01
WMK-01
WMK-03
Desk mount (Landscape only)
DMC-01
ES-02

Additional information

Color

Black

Brightness

350 cd/m2

Resolution

1920×1080

Size

32"
