Samsung VH55R-R – videowall


Video walls without sewing with frames, ultra-thin.

  • The design of the bezel uniform of 0.44 mm offers an image that is immersive and seamless.
  • The viewing angles are wide to allow a presentation of clear image for most viewers in large spaces
  • The brightness of 700 nits and the panel anti-glare feature a high visibility 24h/24 and 7d/7.
  • The technology of improving the image provides visual optimized


6 290,00


Price exclusive of vat


Features VH55R-R

Video walls without sewing with frames, ultra-thin

With an exceptionally narrow, measuring only 0.44 mm and equipped with advanced technology to improve the image of Samsung as well as large viewing angles, the VHR-R offers the experience of a powerful and transparent. The design is modern and thin allows the display to blend into any professional environment.

Murs vidéo sans couture avec des cadres ultra-minces

Bezel almost invisible 0.44 mm

A uniform framework exceptionally the end of 0.44 mm – depth framework to framework of 0.88 mm – you can stream the content in the form of a homogeneous image. In addition, the screen helps eliminate any potential distortion of the image and offers a viewing experience more immersive.


Lunette presque invisible de 0,44 mm

View the contents from any angle

The angles of vision wide of the screen mean that the content is easily visible even if the viewers do not stand directly in front of the screen. The public may obtain information clear and precise, regardless of the provision or of the location of the video wall.


Visualisez le contenu sous n'importe quel angle

Technology image enhancement

The powerful technology of improving the image of Samsung ensures that all content is bright and clear. With the mode Picture Enhancer, color saturation, and contrast are improved by adjusting the gamma curve. Using the Black Equalizer, dark images are thinning, so that the details are easier to see.


Technologie d'amélioration de l'image

Modern Design and end

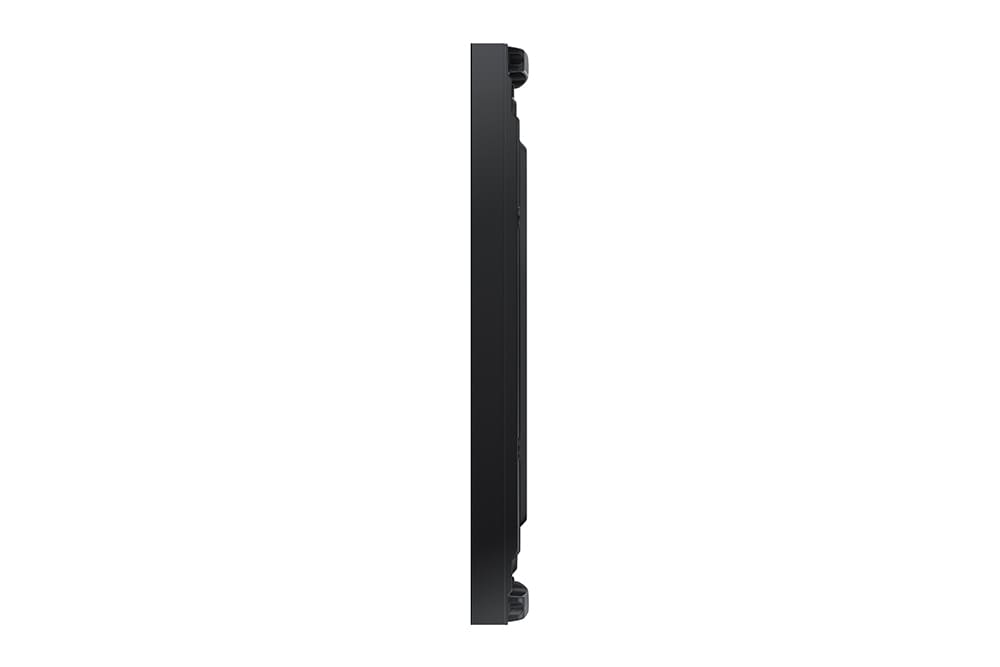

Screens VHR-R feature an aesthetic of high design with a depth of ultra-thin less than 70 mm. This allows the display to save space and create a clean look and modern for retail shops or other public spaces.


Design moderne et fin

Vibrant images 24h/24 and 7d/7

Check out an image presentation shiny with an impressive brightness of 700 nit, allowing companies to provide clear information 24h/24 and 7d/7. The panels anti-dazzling screen offer better visibility regardless of ambient light, ensuring that critical information is always visible.


Des images éclatantes 24h/24 et 7j/7

Calibration mobile practice

The solution Color Expert Pro Mobile Samsung makes calibration quick and easy video wall via a mobile camera. Thanks to the intuitive user interface of the solution, even non-experts can simultaneously adjust the white balance up to 5×5 video wall without the need for additional equipment.


Étalonnage mobile pratique

*Samsung Color Export Pro Mobile is only available on some models of smartphones.

Full calibration

The calibration process at the factory in several stages of Samsung rule the video walls for brightness and colour across multiple screens. In addition to careful calibration in factory, the users can also manage brightness and color uniformity with Color Expert Pro Samsung, a powerful free software.


Étalonnage complet

Presentation UHD advanced

Video walls; Samsung provide a viewing experience UHD impressive with a minimum of effort. With a design in daisy-chain fashion using the ports, DisplayPort 1.2 and HDMI, the screen VHR-R can project the content in UHD on several screens up to 5 x 5 without the need of external graphics card or separators UHD.


Présentation UHD avancée

Industry-standard certified VH55R-R

The series VHR-R conforms to the EMC class B, ensuring an environment of visualization course respecting the strict standards of emission of electromagnetic waves. Packaging of the display has also passed a rigorous test in 4 steps in a certified laboratory ISTA designed to minimize the possible damage during the delivery.


Norme de l'industrie certifiée

* EMC : electromagnetic Compatibility
*ISTA : International Safe Transit Association

Operations all-in-one intuitive

The UHD Signage Player Box combines the tools of information processing and content management in a single platform, for simplicity, increased operational. Weighing in at just 0.6 kg, even with MagicINFO S Player 6 and SSSP 6 built-in, the compact design of the housing makes it the ideal solution.


Opérations tout-en-un intuitives

* The Signage Player Box is sold separately.

Specifications VH55R-R

Panel VH55R-R

  • Diagonal size55"
  • TypeIPS
  • Resolution1920*1080 (Full HD)
  • Pixel pitch(mm)0,63 mm (H) * 0,63 mm (V)
  • Active display area(mm)1209,6 * 680,4 mm
  • Brightness (Max)Max 700 nit
  • Contrast ratio1100:1
  • Angle of view (H/V)178/178
  • Response time (G to G)8ms
  • Display colors8 bit – 16.7 M
  • Range of colours72%
  • Opening hours24/7
  • Mist28%

Display VH55R-R

  • C/R dynamic30 000:1
  • Scanning frequency HOf 57.3 kHz ~ 70 kHz
  • Scanning frequency V48Hz ~ 75Hz
  • Frequency of pixels maximum78 MHz

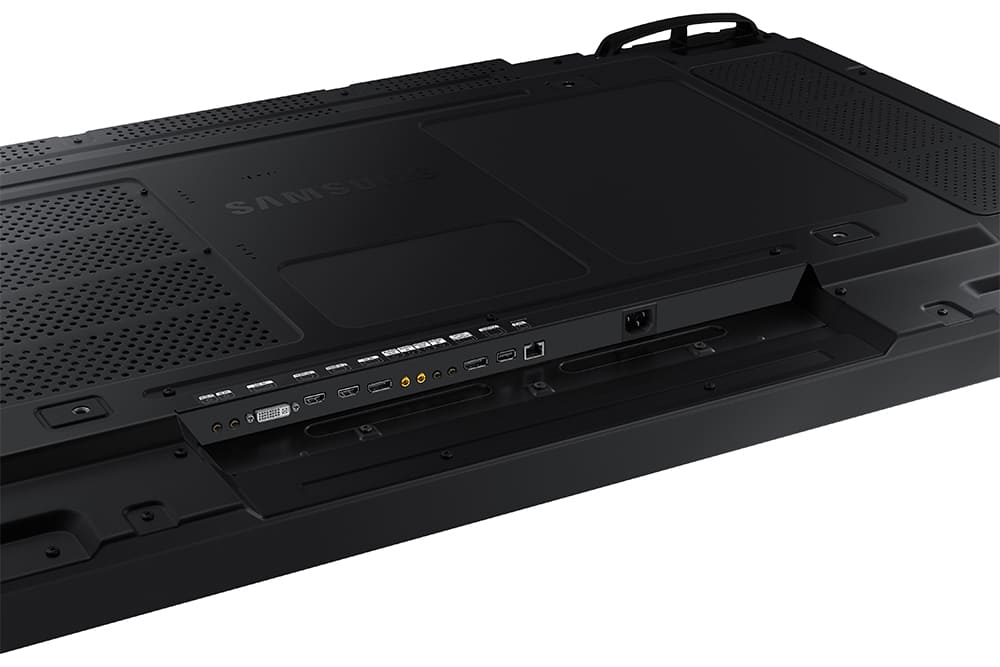

Connectivity VH55R-R

  • RGBDVI-D, Display Port 1.2
  • VideoHDMI 2.0 (2)
  • HDCPHDCP 2.2
  • audioMini-jack stereo
  • USBUpgrade F/W only
  • RGBDP1.2 (loop-out)
  • audioMini-jack stereo
  • External controlRS232C (in/out), RJ45
  • External sensorType detachable (IR)


  • TypeInternal
  • Current SourceAC100-240V~, 50/60Hz
Power consumption
  • Max[W/h]270
  • Typical[W/h]153
  • BTU (maximum)921
  • Standby Modeless than 0.5 W
  • Stopless than 0.5 W

Specification mechanical VH55R-R

Dimensions (mm)
  • Set1211.0 X 681.7 X 69.9
  • Package1414.0 X 844.0 X 257.0
weight (kg)
  • Set16.8 kg
  • Package25,1 kg
  • VESA mount (mm)600 * 400 (mm)
  • Width bezel (mm)0.44 mm (pair)


  • Operating temperature0 ℃ ~ 40 ℃
  • Humidity10 % ~ 80 %

Additional information






700 cd/m2


36 month
