Samsung UH46N-E – videowall


Wall-mounted screens video with high visual impact, deep, and a width of bezel-to-bezel further fine of 1.7 mm.

  • Bezel extremely narrow (B-to-B 1.7 mm) for a viewing experience virtually smooth and realistic
  • Excellent color accuracy and uniformity of brightness thanks to precise calibration and panel technology
  • Daisy Chain through the use of DisplayPort (DP) 1.2 or HDMI, eliminating the need for graphics cards
  • Screens very reliable designed for operation 24h/24 and 7d/7, with a wall bracket special simple and easy to use

3 515,00


Price exclusive of vat


Features UH46N-E

Provide a visual impact deep

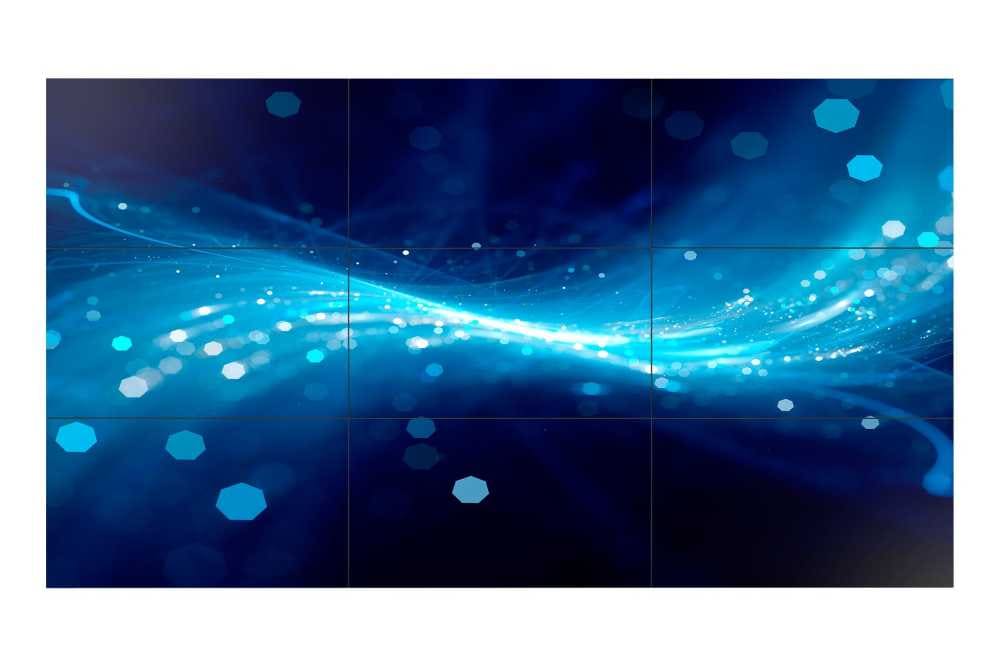

The video wall with narrow bezel Samsung has a width of bezel to bezel 1.7 mm that minimizes the visual distraction of video walls to elicit striking images of the products. The display produces an image of almost homogeneous across multiple screens without interruption, captivating and impressing the customers.

Offrir un impact visuel plus profond

Amplify image clarity in any environment

Combined with a panel anti-glare, the screen video wall with super narrow bezel is designed to help businesses create a content presentation memorable, even under ambient light. This panel evenly distributes light throughout the screen, eliminating glare while maintaining the brilliance and accuracy of the content.

Amplifiez la clarté de l'image dans n'importe quel environnement

Extend the capabilities of presentation of content

The video wall Samsung offers a viewing experience UHD powerful with minimal effort or extra equipment. As the first in the industry to have a configuration that wall up to 5×5 based on the use of ports, DisplayPort 1.2 and HDMI, the screen that can project content to UHD on multiple screens simultaneously.

Étendre les capacités de présentation de contenu

Share accurate and uniform

The calibration process at the factory in several stages of Samsung rule the video walls for brightness and colour across multiple screens. In addition to careful calibration in factory, the users can also manage brightness and color uniformity with Color Expert Pro Samsung, a powerful free software.

Partagez un contenu précis et uniforme

Calibration mobile economic simplicity

The solution Color Expert Pro Mobile Samsung makes calibration quick and easy video wall via a mobile camera. Thanks to the intuitive user interface of the solution, even non-experts can simultaneously adjust the white balance up to 5×5 video wall without the need for additional equipment.

Étalonnage mobile économique en toute simplicité

* Some models may require the use of a PC and the software Color Expert Pro to calibrate the screens.

Enjoy consistent performance and long-term

Video walls super narrow bezel Samsung are designed for long-term performance, eliminating maintenance expenses for users. The screen has panels that are sustainable and compensate for variations of backlight while protecting simultaneously the screen from exposure to heat and dust.

Bénéficiez de performances continues et à long terme

Dissemination of reliable content for businesses

Designed to maintain performance in various indoor environmental conditions, video wall-Samsung's product in an appealing visual experience with contrast ratios and brightness levels. With continuous operations, 24 hours on 24, 7 days on 7, the screen enables the dissemination of content lively and reliable for all the needs of the business.

Diffusion de contenu fiable pour les entreprises

Box all-in-one with a multi-purpose use

Supported by a Quad-Core processor, Signage Player Box allows you to switch multi-sources and a media player to co-exist in a single housing. Leveraging the platform, the Samsung SMART Signage integrated, the box transforms video walls for a faster processing of information and easy to manage the content with the solution, MagicINFO.

Boîte tout-en-un avec une utilisation polyvalente

Wall mounts highly configurable

The wall brackets with special user-friendly ensure easy installation of video walls in a minimum of steps. Sized to the dimensions of the video wall, the wall mount allows users to install the mount first and fit the video wall, eliminating the need for efforts tedious to measure and adjust the size of the wall bracket.

Supports muraux hautement configurables

Panel UH46N-E

  • Diagonal size46″ UH46N-E
  • TypeD-LED DID
  • Resolution1920*1080 (Full HD)
  • Pixel pitch(mm)0,53025 mm (H) * 0,53025 mm (V)
  • Active display area(mm)1018,08 mm * 572,67 mm
  • Brightness (Typ.)700 nits
  • Contrast ratio4000:1
  • Angle of view (H/V)178/178
  • Response time (G to G)8ms
  • Display colors8 bit – 16.7 M
  • Range of colours72%
  • Opening hours24/7
  • Mist25 % (haze outdoor 23 %)

Display UH46N-E

  • C/R dynamicMEGA DCR
  • Scanning frequency H30kHz ~ 81kHz
  • Scanning frequency V48Hz ~ 75Hz
  • Frequency of pixels maximum148,5 MHz

Connectivity UH46N-E

  • RGBD-SUB analog, DVI-D, Display Port 1.2
  • VideoHDMI 2.0 (2)
  • HDCPHDCP 2.2
  • audioMini-jack stereo
  • USBUpgrade F/W only
  • RGBDP1.2 (loop-out)
  • audioMini-jack stereo
  • External controlRS232C (in/out), RJ45
  • External sensorType detachable (IR, ambient)


  • TypeInternal
  • Current SourceAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power consumption
  • Max[W/h]187
  • Typical[W/h]102
  • BTU (maximum)638
  • Standby Modeless than 0.5 W
  • Stopless than 0.5 W

Specification mechanical

Dimensions (mm)
  • Set1020.0 X 574.6 X 96.3
  • Package1153 X 719 X 295
weight (kg)
  • Set15,7 kg
  • Package21.6 kg
  • VESA mount (mm)600 * 400 (mm)
  • Width bezel (mm)A 1.15 mm (U/L), 0.55 mm (R/B)

Operation UH46N-E

  • Operating temperature0 ℃ ~ 40 ℃
  • Humidity10 % ~ 80 %

Additional information






700 cd/m2


36 month
