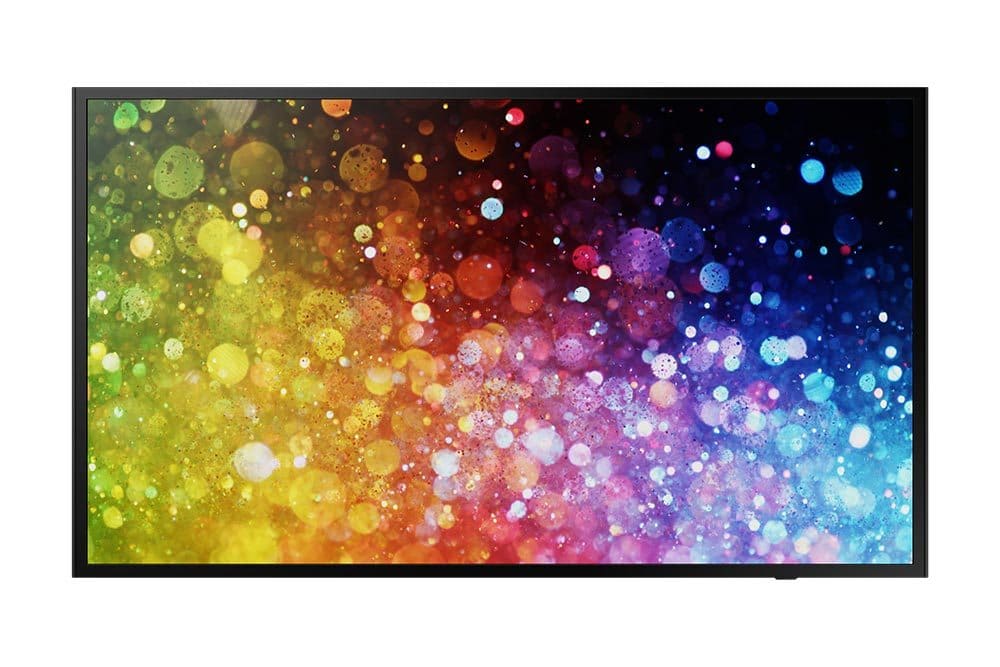

Samsung DCJ

Description

Amplify the business e-mail

The Samsung series DCJ combines a resolution of FHD, a brightness of 300 nits and reliability 16/7 to stimulate engagement and relay information in a timely manner with a presentation of the content above.

Load your media and easily share

The player MagicInfo Lite, built-in allows users to load and easy to view a wide range of content types. Simply plug in a device USB on the built-in port or access the internal memory to display the desired content on the screen.
Series Samsung DCJ combines a resolution FHD, 300 nits brightness and reliable 16/7 to stimulate the commitment and conveying information in a timely manner with a presentation of the content above.

Simplify the planning of content

Use the solution MagicINFO Lite to remotely manage content and monitor the Samsung series DCJ on a network via the server MagicINFO. Easily access information on the device, the time of content playback and more without being in front of the screens.

Diversify connectivity preferences

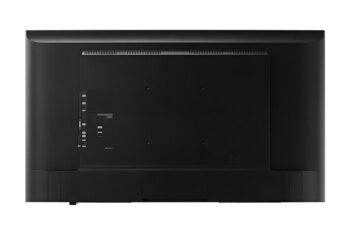

With an interface versatile, including USB, DVI, HDMI, RS-232C and RJ45, connect and use easily a wide range of devices with the screen.

Specifications Samsung DCJ

Panel

Diagonal size – 43" Samsung DCJ
Type – 60 Hz D-LED BLUE
Resolution – 1920*1080 (Full HD)
Pixel pitch(mm) – 0,16333(H) x 0,49005(V)
Active display area(mm) – 940,89 (H) x 529,25 (V)
Brightness – (Typ.)300 nits
Contrast ratio – 3000:1
Angle of view (H/V) – 178:178
Response time (G-to-G) – 8ms
Display colors – 16.7 million
Color range – 72%
Time is running – 16/7
Mist – 2%

Display

C/R –dynamic - MEGA
Scanning frequency H –30 ~ 81 kHz
Scanning frequency – V48 ~ 75HZ
Frequency of pixels maximum – 148,5 MHz

Connectivity

RGB – DVI-I
Video – HDMI 1.4 (2), Component (CVBS common)
HDCP HDCP 1.4
the audio – Stereo Mini jack, RGB/DVI/HDMI/CVBS/Audio component (common)
USB – USB 2.0 x 1

Power

Current Source – AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Max[W/h] – 99
Typical[W/h](W/W) – 53, (United States)38, (KR)62
BTU (max) – 337
Standby Mode – less than 0.5 W
Stop – 0

Dimensions

Adjust – 985.5 X 574.8 X 73.4
Pack – 1099 X 672 X 156

Weight

Adjust – 7.8 (kg)
Pack – 11.5 (kg)

Operating Conditions

Operating temperature – 0,0 ℃ ~ 40,0 ℃

Humidity – 10,0 % ~ 80,0 %

General characteristics

Main featuresLFD light with MagicInfo Lite, built-in
OrientationN / A
Remote controlN / A

Special featuresH/W : coating super transparent, temperature sensor, display swivel, button lock, battery clock (maintenance of the clock to 168 hours), built in speaker (10 W x 2) S/W : switching and recovery of automatic source, RS232C/RJ45 MDC, plug and Play (DDC2B), MagicInfo Lite, built-in, firmware update by network

Certification and compliance

Security– CB (Europe) : IEC60950-1/EN60950-1 – CCC (China) : GB4943.1-2011 – PSB (Singapore) : PSB+IEC60950-1 – nom (Mexico) : nom-001-SCFI-1993 – IRAM (Argentina) : IRAM+IEC60950-1 – SASO (Saudi Arabia) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 – nom(Mexico) : Tunerless : nom-019-SCFI-1998 – KC( Korea) : K 60950-1 EAC (Russia) : EAC+IEC60950-1 – INMETRO (Brazil) : INMETRO+IEC60950-1 – BSMI (Taiwan) : BSMI+IEC60950-1 – RCM (Australia) : IEC60950-1/ AS/NZS 60950-1 – CSA (Canada) : cUL UL(USA) : cUL60950-1 – TUV (Germany) : CE – NEMKO (Norway) : CE
EMC“- FCC (USA) Part 15, Subpart B, Class A – CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 – VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : No tuner : KN22 / KN24 – BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital) – C-Tick (Australia ) : AS/NZS CISPR22:2009 – CCC(China) :GB9254-2008, GB17625.1-2012 – GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024 :1998+A1:2001+A2:2003”

Additional information

Size	43", 49"
Resolution	1920×1080
Brightness	350 cd/m2
Warranty	36 month
