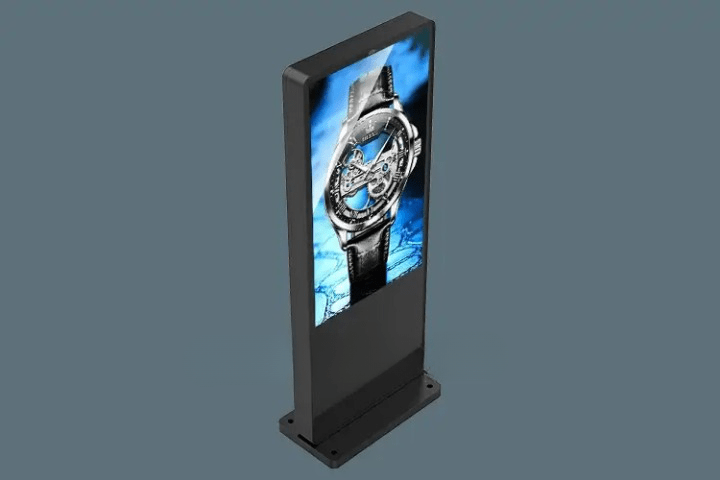

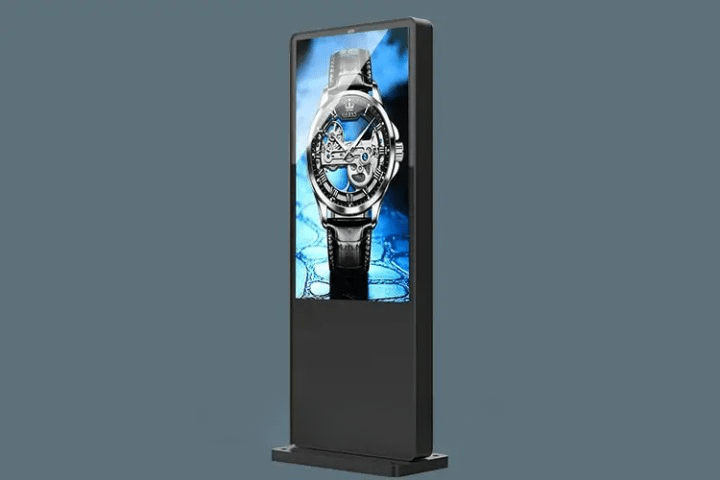

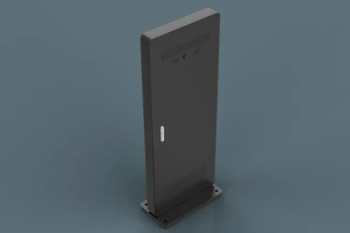

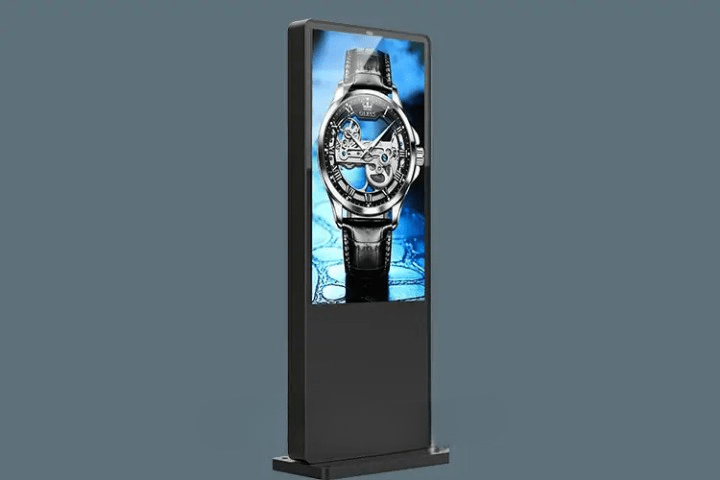

Kiosk / Totem waterproof slim

Features Totem waterproof slim

Our kiosk/totem outdoor is IP65 dust-tight and water, it has a high brightness of 2000 ~ 3000 nits for outdoor use, it is designed specifically to withstand the weather, and to work in the heat, cold, rain, snow and dust. These kiosks/totems digital remotes have an ultra slim design for maximum impact on the screen without distraction.

  •  Sizes : 43" 55"
  •  Brightness : 2000~3000 nits
  •  Resolution : 1920*1080
  •  Installation: Kiosk / Totem



You are interested ? then your wait is over !

“The display of the prices is not available, please contact us to make an estimate

Category

Price exclusive of vat

Description

Description / features

Our kiosk/totem outdoor is IP65 dust-tight and water, it has a high brightness of 2000 ~ 3000 nits for outdoor use, it is designed specifically to withstand the weather, and to work in the heat, cold, rain, snow and dust. These kiosks/totems digital remotes have an ultra slim design for maximum impact on the screen without distraction.

Our exterior digital signage can help you to :

  • Maximize your return on investment on marketing and advertising.
  • Provides a lower total cost of ownership over the life of the enclosures.
  • The open Solution – Replace, upgrade, or modify the equipment in case of need.
  • Performance – Peace-of-mind Efficiency for intensive applications 24h/24 and 7d/7.
  • Support profitable advertising.

Kiosk / Totem waterproof digital slim

Display ultra-high brightness

2000 ~ 3000nits high brightness and performance of work 24 * 7, visible in direct sunlight, which is an outward display that is readable in the sun

System of automatic control of temperature

Depending on the internal temperature of the machine, the speed of the fan
can be automatically adjusted in order to maintain the internal temperature of
the machine to a normal operating temperature

Framework design ultra-thin

La conception d’apparence du bord ultra-étroit rend l’apparence de l’ensemble de la machine plus exquise

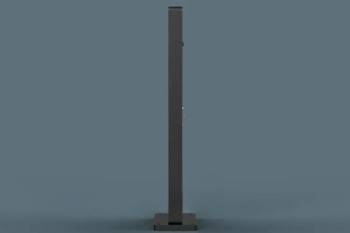

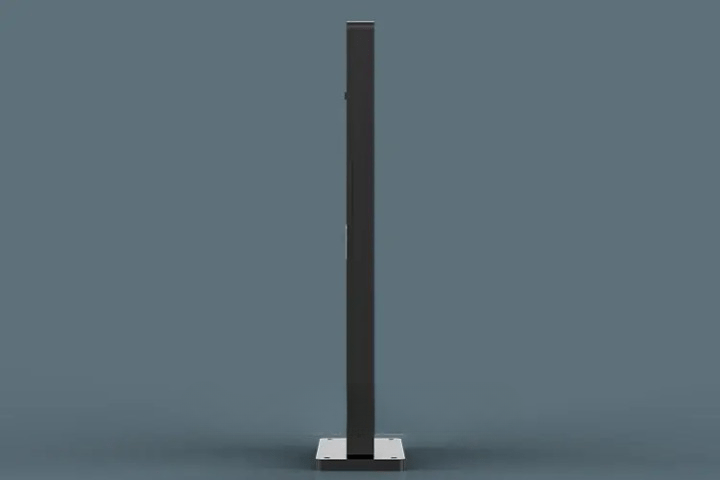

The fuselage is thinner and lighter

Dans le même temps, l’épaisseur de l’ensemble du fuselage est également rafraîchie à 120 mm

Protection stable IP65

Dustproof, sunscreen, anti-corrosion, anti-theft, anti-explosion,
anti-moisissure biologique, rendent l’équipement adapté
at any outdoor environment

Support for multiple functions split screen

Prise en charge de plusieurs fonctions d’écran partagé Plusieurs
the videos and images in split-screen mode can be played back at the same time

Support automatic brightness adjustment

Peut ajuster automatiquement la luminosité de l’écran en fonction
de l’environnement d’utilisation réel

Waterproof design

The body adopts a new generation of waterproof technology, which can
easily cope with the outside weather conditions changing

High-quality material, excellent finish

The professional process and quality are evident in every detail

System Android or Windows

We provide operating systems flexible according to different applications

product details

Popular Applications






PanelDisplay size (inch)43"55"
Resolution1920×10801920×1080
Active display area(mm)941.2×529.41209,6 x 680,4
Aspect Ratio16:0916:09
Brightness(cd/m2)2000nit2000nit
Contrast ratio (Typ.)1000:12000:1
Angle of view (H/V)178/178178/178
Color16.7 M16.7 M
Response time (G to G)6ms6ms
Opening hours24/724/7
SoundSpeaker5W, 8Ω (2 games)5W, 8Ω (2 games)
PowerTypeInternalInternal
Current SourceAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power consumptionMax[W/h]100150
Standby Modeless than 0.5 Wless than 0.5 W
Stopless than 0.5 Wless than 0.5 W
Specification mechanicalGlass protectionYesYes
Media TypeFoot SupportFoot Support
EnvironmentOperating temperature-40°C ~ 50°C-40°C ~ 50°C
Storage temperature-30°C ~ 55°C-30°C ~ 55°C
operating humidity10 % ~ 80 %10 % ~ 80 %
Storage humidity5% ~ 95%5% ~ 95%
Cooling systemTurboventilateur powerful and flow fan cross/air conditioning (optional)
Protection against hypothermiaHeating (heater aluminium sheet) (option)
ISMedia player AndroidProcessorRockchip® 3288 (1.8 GHz, quad-core)
RAM2G
GlowMEM 8G
USBHOST USB2.0 (X2)
local area networkEthernet 10M/100M (screen network version only)
External memory8gb SD card (up to 32gb)
MultimediaVideo (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG)
Resolution media1920*1080
Wi-fiEthernet 802.11 b/g/n (screen network version only)
System operatorAndroid 7.1
CertificateSecurityCE ROHS IP65
AccessoriesIncludedScheduling software, Remote control, Key, power Cable, SD Card
Quality Assurance1 year
Type of packagingCardboard box/box with honeycomb + wooden crate
