Description
Description / features
Écran connecté et avec la possibilité d’être tactile, il est certifié IP65 and it is compatible with Android, or Windows perfect to manage your media remotely. This product is ideal for public transport, shop fronts, hotels, schools, parks, banks, etc.
Features and benefits:
- Protégé de -30°C à 55°C avec chauffage interne et climatisation en option – le boîtier protège vos écrans des températures extrêmes chaudes et froides, à tout moment de l’année.
- Protégé contre la pénétration de liquide selon les normes IP65 – le boîtier protège vos écrans dans des conditions humides, même pendant les mois d’hiver extrêmes.
- Technologie brevetée de rideau d’air – la température de l’air est maintenue constante tout au long, réduisant le risque de dommages causés par les points de chaleur.
- swap, replace or upgrade the screens as many times as you want without having to invest in new housing.
- Double security locks that are not visible – to your screens are resistant to tampering.

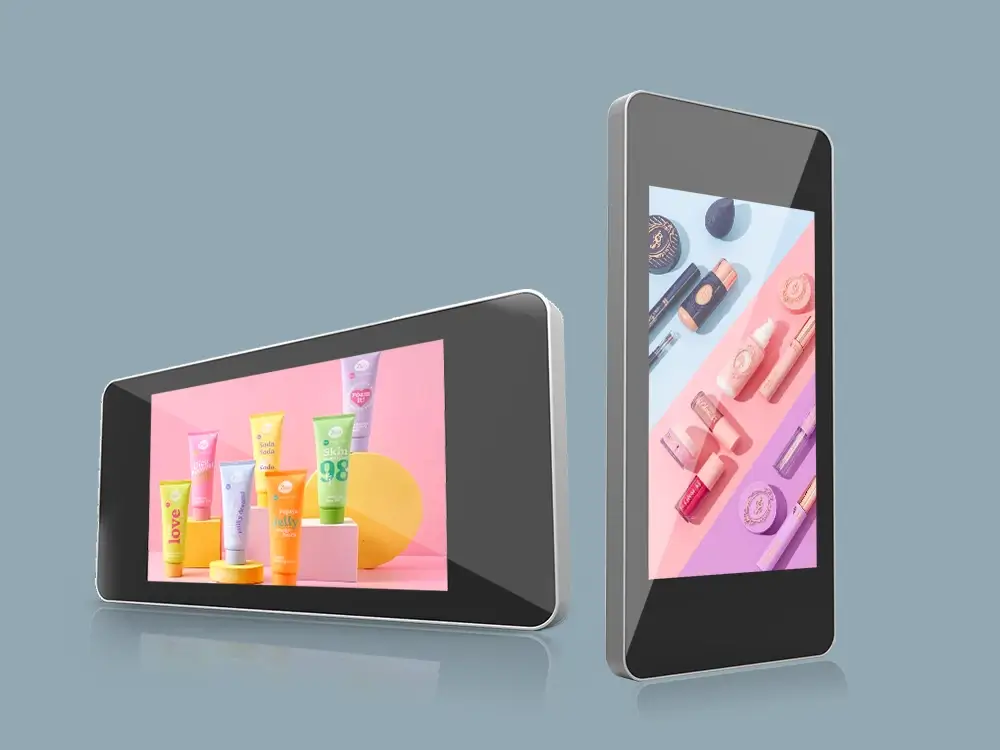

Totem outdoor smart IP65
21.5″ 32″43″49″55″65″
Protection IP65
Impervious to water, dust, photoprotection, lightning, shock, corrosion, theft
Viewing Angle full 178°
le multi-angle apporte une qualité d’image parfaite
Support for multiple screens shared
Support split-screen mode through the software, backup, export-import ADS
Glass explosion-proof
Le verre trempé de haute qualité de 4 mm à 6 mm peut résister à des chocs violents et protège l’écran.
Screen ultra-clear FHD range of colors 100 %
Une qualité d’image qui peut afficher des couleurs brillantes avec plus de précision et
de précision, et s’adapter à tous les milieux
Screen smart ultra high brightness
2000 ~ 3000nits high brightness and performance of work 24 * 7, visible in direct sunlight, which is an outward display that is readable in the sun
Intelligent control of the brightness sensor
le capteur peut régler automatiquement la luminosité de l’écran LCD en fonction de la
brightness of the external light.
in order to minimize the energy consumption, save energy and protect the environment
Structure design of ventilation quality
Adopte une conception de structure de ventilation de qualité militaire. Lorsque la température de la machine augmente, elle peut refroidir rapidement sans affecter l’utilisation normale
System Android or Windows
We provide operating systems flexible according to different applications
product details
Popular Applications
Panel | Display size (inch) | 43" | 49" | 55" | 65" | |
Resolution | 1920×1080
(16:9) | 1920×1080
(16:9) | 1920×1080
(16:9) | 1920×1080
(16:9) | ||
Active display area(mm) | 941×529 | 1073.5(H) x
603.0(V) | 1209.6(H)x
680.4(V) | 1428.5(H) x
803.5(V) | ||
Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | ||
Brightness(cd/m2) | 2500nit | 2500nit | 2500nit | 2500nit | ||
Contrast ratio (Typ.) | 2000:1 | 2000:1 | 2000:1 | 3000:1 | ||
Angle of view (H/V) | 178/178 | |||||
Color | 16.7 M | |||||
Response time (G to G) | 6ms | |||||
Opening hours | 24/7 | |||||
Sound | Speaker | 5W, 8Ω (2 games) | ||||
Power | Type | Internal | ||||
Current Source | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | |||||
Power consumption | Max[W/h] | 120 | 150 | 260 | 280 | |
Standby Mode | less than 0.5 W | |||||
Stop | less than 0.5 W | |||||
Mechanical
Specification | Glass protection | Yes | ||||
Media Type | wall bracket | |||||
Environment | Operating temperature | -40°C ~ 50°C | ||||
Storage temperature | -30°C ~ 55°C | |||||
operating humidity | 10 % ~ 80 % | |||||
Storage humidity | 5% ~ 95% | |||||
Cooling system | Turboventilateur powerful and flow fan cross/air conditioning (optional) | |||||
Protection against hypothermia | Heating (heater aluminium sheet) (option) | |||||
IS | Media player Android | Processor | Rockchip® RK3288 (1.8 GHz, quad-core) | |||
RAM | 2G | |||||
Glow | MEM 8G | |||||
USB | HOST USB2.0 (X2) | |||||
local area network | Ethernet 10M/100M (screen network version only) | |||||
External memory | 8gb SD card (up to 32gb) | |||||
Multimedia | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG) | |||||
Resolution media | 1920*1080 or 4K | |||||
Wi-fi | Ethernet 802.11 b/g/n (screen network version only) | |||||
System operator | Android 7.1 | |||||
Certificate | Security | CEROHS | ||||
Accessories | Included | Scheduling software, Remote control, Key, power Cable, SD Card, wall mount | ||||
Quality Assurance | 1 year | |||||
Type of packaging | Cardboard box/box with honeycomb + wooden crate |
