Description

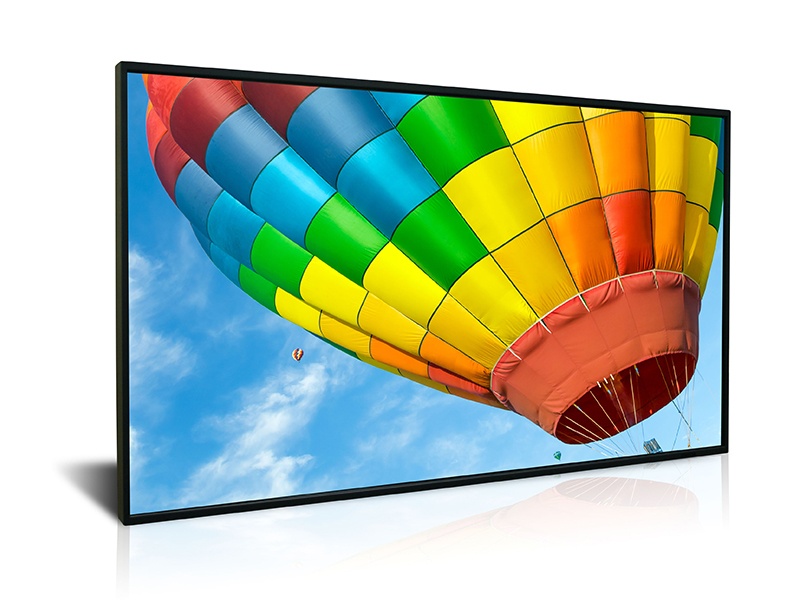

Screen showcase high brightness LCD DYNASCAN 65" Model DS652LR5 4000 CDL
The screen DS652LR5 is a LCD ultra-high-brightness Full HD with a back-lighting system to LEDS producing an image visible even in direct sunlight thanks to a brightness of 4000 CDL. The model DS652LR5 has been designed for applications to run in environments that are very exposed to light such as public spaces or shop windows.
Features :
| Screen Type LCD | Color 64,53-inch LCD |
| Native resolution | 1920 x 1080 |
| Backlight | Direct LED with Local Dimming |
| Brightness | 4000 cd/m2 |
| Default color Temperature | D65 (6500 K) |
| Contrast ratio | 3 000:1 (static), 1,000,000:1 (dyn) |
| Response time | 10 ms (typ) |
| Viewing Angle | 178 ° / 178 ° |
| MTBF | 50,000 hours (typ.) |
| Panel surface | AG Haze 1%, 3H |
Electrical |
|
| Current Source | Internal |
| Rated voltage | 100 V ~ 240 V, 50 Hz / 60 Hz |
| Walk Mode | 510 W (typ), 740 W (max) |
| Power saving Mode | <1 W |
| AC Out | <100 W |
Mechanical characteristics |
|
| Frame (H / B / G / D) | 18 /18 /11,9 / 11,9 mm |
| Color of case | Black |
| Monitor Dimension (Lxhxd, w / o bracket) | 1457 x 844 x 102 mm |
| Weight Net / Gross | 52.5 kg / 56,5 kg |
| (VESA dimension) | 400 x 400 mm & 600 x 400 |
| Orientation | Portrait / Landscape |
User Interface |
|
| Language | English |
| Daisy Chain | DVI, RS-232 |
| Image retention | Yes |
| Control dimming (DCR), ( Local Dimming ) | Yes |
| Support mature video | Up to 15×15 |
| ID Frame for Daisy Chain | Yes |
| Programming the switching on / off | Yes |
| Ambient light sensor | Yes |
| Internal temperature sensor | Yes |
| Management | RS-232 (In/Out ), RJ45 |
| OSD Menu Rotation | Yes |
| Carry handles | Yes (2) |
Video input |
|
| DVI-D | In ( 1x ), Out ( 1x) |
| DisplayPort | In ( x1 ) |
| Accessories | |
| Remote control | Yes |
| User's Guide / CD-ROM driver | Yes |
| Cables | DVI, RS232, RJ45 |
| Power cable | Yes |
Environment |
|
| Operating temperature | 0 ° C ~ 45 ° C |
| Storage temperature | -20 ° C ~ 60 ° C |
| Humidity | 10% ~ 80% RH non-condensing |
Certificate |
|
| CE / FCC / ROHS | yes |
