Description
The AG Neovo DR-24G is a monitor dental of 24 inches that can quickly switch display mode of X-rays to look at dental x-rays without having to use another screen of x-rays with the gamma correction advanced to the adjustability of the alignment of the black level and contrast ratio, the dentist can check the condition of the teeth of the patient, the position of the jaw, and the bone facial before any dental treatment. The screen glass lens hard NeoV™ and the design of the case in white metal will meet a set of requirements, cleaning of medical level, allowing dental professionals to clean and disinfect the monitors.
Les écrans médicaux AG Neovo sont conçus et fabriqués pour une utilisation dans les environnements de soins de santé, médicaux et cliniques, mais ne sont pas des «dispositifs médicaux» ou conformes à la norme ISO 13485. L’intégration professionnelle dans un environnement médical peut nécessiter des connaissances, des compétences et des certificats spécifiques et relève à tout moment de la responsabilité de l’intégrateur.
EASY TO CLEAN, ROBUST PROTECTION
QUICK PASSAGE MODE DISPLAY OF X-RAYS

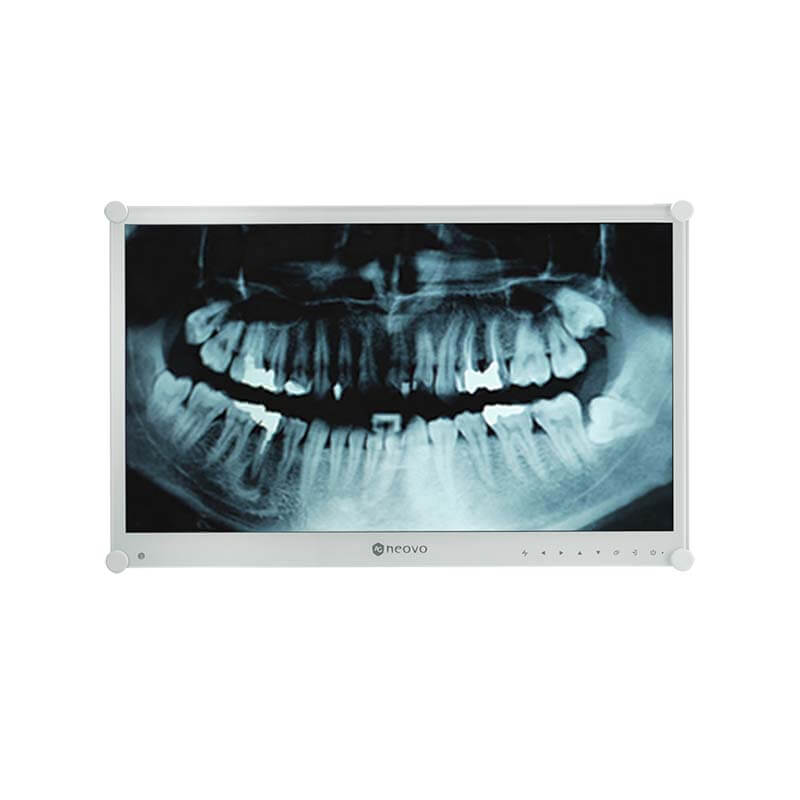

The monitor dental DR-24G 24-inch has shortcut keys to quickly switch the display mode to X-rays without having to use another display of x-rays.
ADAPTATEUR D’ALIMENTATION 24V CC DE QUALITÉ MÉDICALE POUR UNE CONNEXION À UNE PLUS LONGUE DISTANCE
Designed to operate with a supply voltage 24V DC, it is ideal for cable management to long-distance (up to 5 meters) between the dental equipment and screens. Food grade medical certified IEC / EN60601-1 ensures the safety, performance and a reliable operation in any environment medical professional.
SUPPORT PIP/PBP
The PiP/PbP functions allow you to view and compare two images from different sources and improve the efficiency of the work in case of multitasking.
HIGH MOBILITY

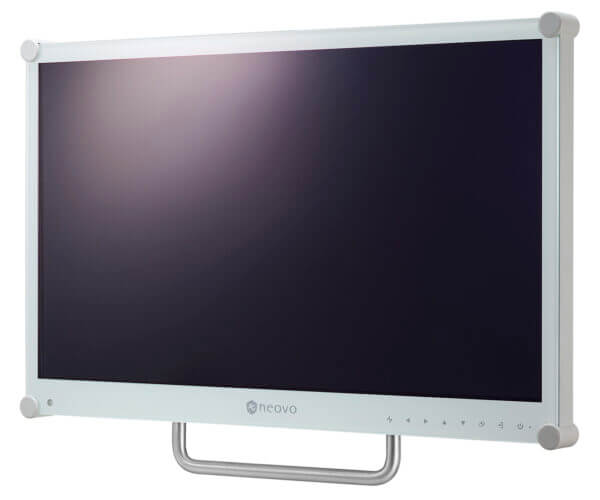

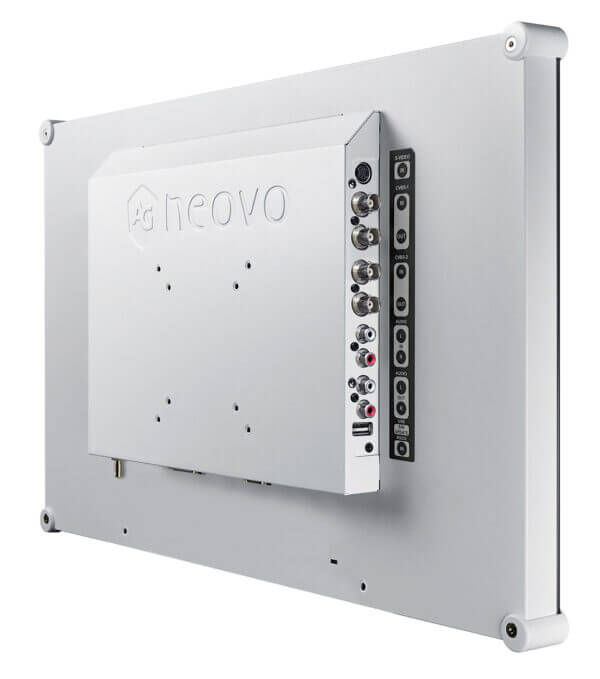

This monitor dental, 24-inch standard wall-mounting, VESA 75mm/100mm, and has an optional carrying handle for installation and use of flexible on the dental chair.
Reference | DR-24G |
---|---|
Net weight | 7.4 kg |
Manufacturer | AG Neovo |
Warranty (months) | 36 |
Screen size | 24 inches |
Angle of view | 178°/178° |
Response time | 5 ms |
Information |
|
Speaker | 2x 2W |
Dimensions | 562,4 x 352,6 x 56,2 mm |
Power supplies | DC 24 V, 2,71 A |

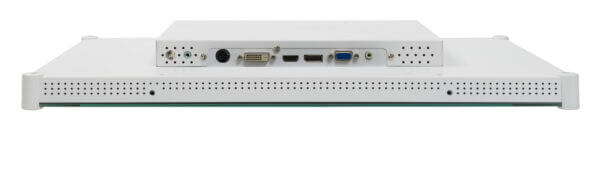

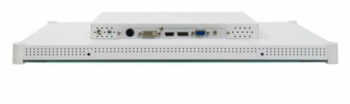

Input Signal | 1x DisplayPort input, 1x Dvi-D input, 1x HDMI input, 1x input Jack3.5mm, 1x RCA input, 1x input RS232, 1x USB input, 1x VGA input, 2x BNC inputs |
Sortie signal | 1x RCA output |
Consumption | 18W |
Operating temperature | 0°C-40°C |
Resolution Max. | 1920×1080 |
Frequency horizontal | 24kHz-83kHz |
Vertical frequency | 50Hz-75Hz |
Contrast | 3000:1 |
