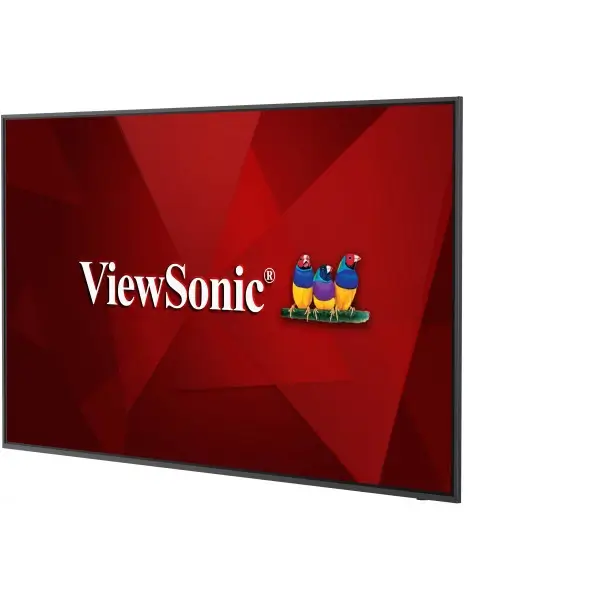

INTRODUCTION CDE6520W

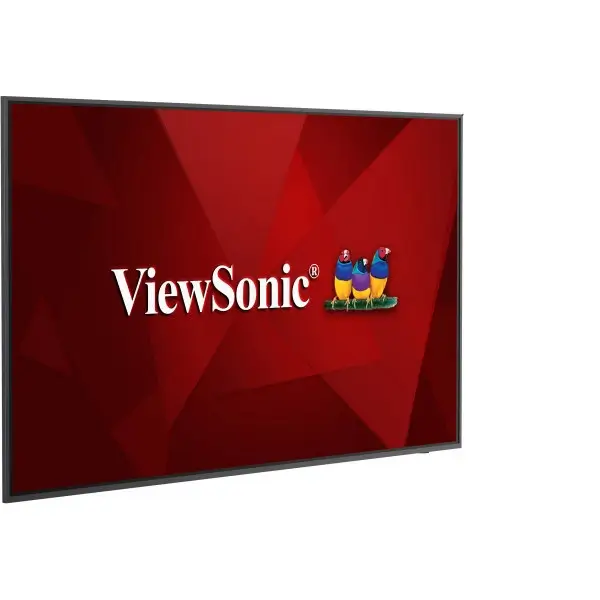

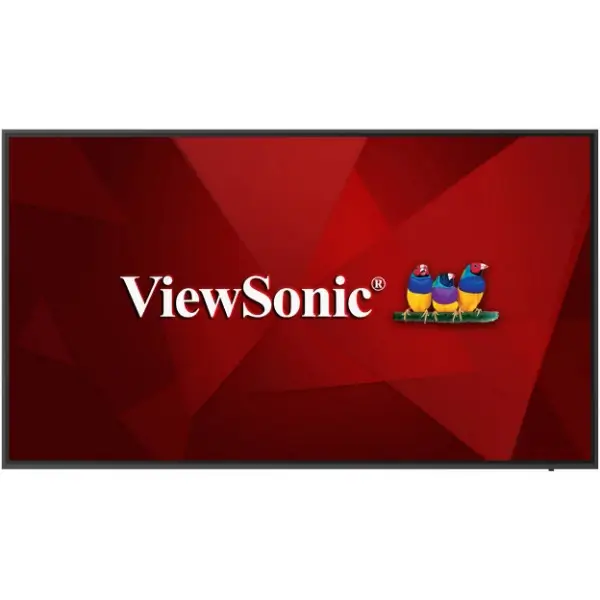

The ViewSonic® CDE6520 is a screen of wireless presentation 4K 65 inch. Le logiciel de partage d’écran intégré *, ViewBoard® Cast and Display, as well as dongles ViewBoard® Cast USB-C / HDMI permettent à plusieurs utilisateurs, sur site ou en ligne, de participer à des conférences et de partager du contenu entre eux simultanément, transformant le CDE6520 en un hub de contenu dynamique. Cet écran de présentation fiable est équipé d’un quad-core processor et d’une mémoire interne, permettant une lecture multimédia constante à partir du stockage interne ou d’une clé USB. Supports remote configuration and content management systems, the ViewSonic® CDE6520 convient également à diverses applications d’affichage.
* Compatible with Chrome, Android, Windows, Mac OS, and iOS
* Support Miracast, Chromecast, and AirPlay
Any computer and browser
No installation necessarysimply launch the Chrome browser, Chromium or Edge to share your content.
*Application myViewBoard Display built-in for wireless streaming
All the content on a single screen
Sur tous les appareils avec l’application
De la présentation côte à côte à celle sur plusieurs écrans, l’affichage permet à tous les utilisateurs mobiles de share their content Full HD.
Gather all remote participants
Web camera 1080p 120 °
The noise reduction, the WDR and the backlight compensation built-in render quality audio-visual of your meeting great in the environments of light and dark.
* VB-CAM-001 (camera) optional
Unique content on all screens
Sur place ou à travers les salles avec l’application
Mirror your content on multiple screens for multi-groups.
Interface d’environnement OS convivial
Built-in player with locations PC OPS and WiFi
* Module optional WiFi & PC OPS VPC12-WPO
Built-in media player
USB plug-and-play photos, music and video
Settings and remote Management of content
myViewBoard manager, SureMDM, Revel Digital and more

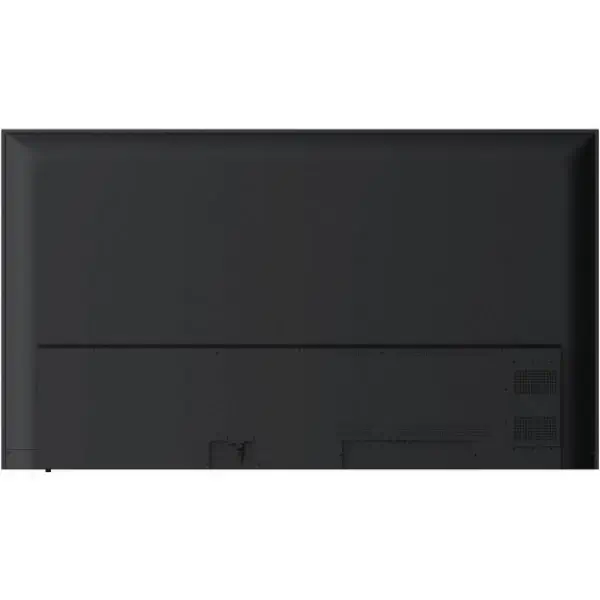

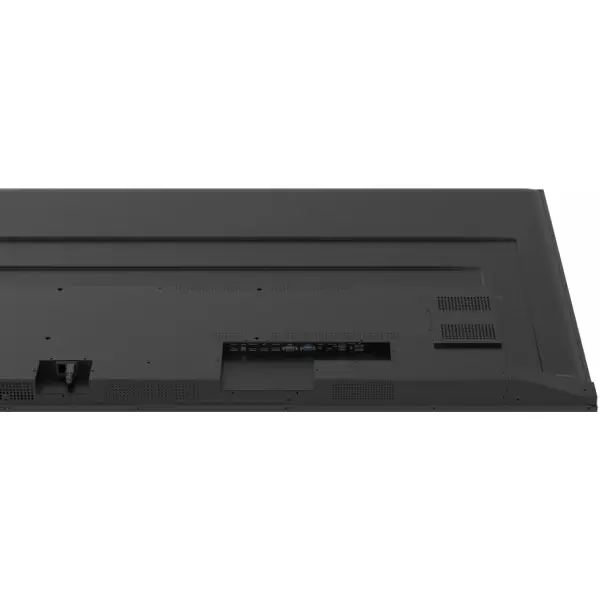

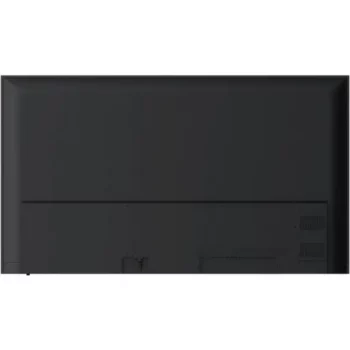

Dimensions et ports d’E/S CDE6520W
- AC input
- Switch
- Internal speakers
- Slot OPS
- Location Wi-Fi
- Menu commands
- Wall mount VESA® 400x200mm
- SPDIF
- HDMI input x 2
- DisplayPort
- RS232
- VGA
- Audio input
- USB 3.0 Type A (USB playback)
- USB 2.0 Type A x 2 (USB playback)
- Audio output
- AND
- ScreenScreen size: 65″
Type/ Technology: LCD Module TFT. Type-IPS, backlight DLED
Display area (mm): 1428.48(H) × 803.52(V) (65″ diagonal)
Native resolution: 3840 x 2160
Height/width ratio: 16:09
Color: 1.07 G colors
Brightness: 450 nits (typ.)
Contrast ratio: 1200:1 Typ. 5000:1 Max (DCR enabled)
Response time: 8 ms
Viewing angles: H = 178, V = 178 typ.
Backlight life: 30,000 Hours (min)
Surface treatment: Anti-glare, hardness 3H, Haze 25%
Edges: Purpose
Orientation: landscape - INPUTSHDMI: x2
RGB / VGA: x1
DisplayPort: x1
Audio: x1 (3.5 mm)
RS-232: x1
Slot OPS: x1 (Intel OPS VPC12-WPO optional)
Slot WiFi: x1
- OUTPUTSAudio : x1 (3.5 mm)
SPDIF : x1 (fiber) - ANDRJ45 : x1
- USBType : 2.0 Type A : 2 x conference (USB), 3.0 Type A : 1 x conference (USB)
- Micro SD card slotMicro SD card slot: No
- SPEAKERSSpeakers: Max. 16Wx2
- COMPATIBILITYRGB PC/HDMI PC: Jusqu’à 1920 x 1080 à 60 Hz. Se référer au calendrier
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
Port d’affichage: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
Android Version: Android 8.0 - POWERVoltage: 100V-240V,50/60Hz (AC)
Consumption: Normal 97 W - ERGONOMICSWall mount (VESA®) : 400×200 mm
- OPERATING CONDITIONSTemperature (º C): 0 to 40°C

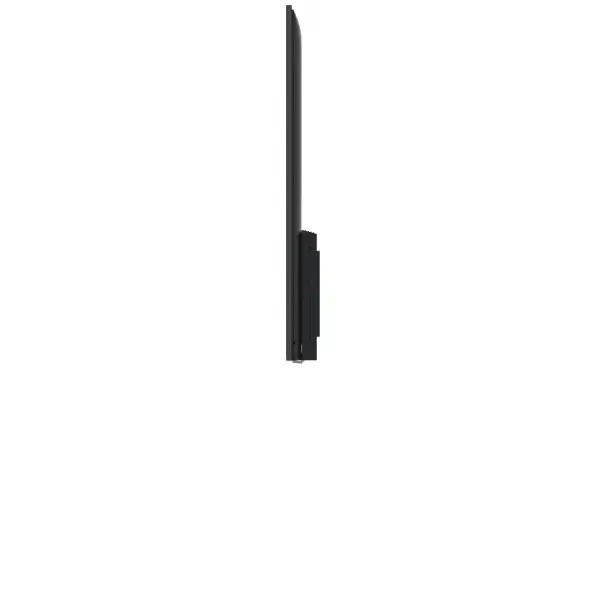

Humidity: 20% ~ 80%, non-condensing - DIMENSIONS (L x H x P)Physical (inch / mm): 57.11 x 32.60 x 3.09 in/ 1450.6 x 828.1 x 78.5 mm
Packaging (inch / mm): 63.19 x 37.99 x 8.66 in/1605 x 965 x 220 mm - WEIGHTNet (lb/kg) : 22,95 kg / 50,59 lb (without stand)
Gross (lb/kg) : 33,6 kg/74,07 lbs - RULESRULES : cULus, FCC, Energy Star, EPEAT, MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, Custom Union, UkrSEPRO, RCM, MEPS
- PACKAGE CONTENTSPACKAGE CONTENTS: 1. Screen CDE6520, 2. Remote control with batteries, 3. Quick start Guide, 4. Power supply Cable (1.5 m), 5. Cable HDMI-IN (3m) 6. Wall-mount screw, 7. RS232 adapter
Compatible with the CDE6520W
-
ViewBoard Cast Button (VB-WPS-001)
€254,55 Add to cart -
VB-STND-005 Cart end
€339,67 Add to cart -

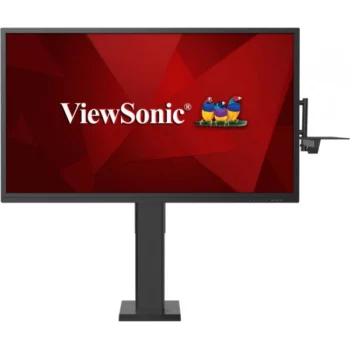

VB-STND-004 motorized Support
€1 131,40 Add to cart -
VB-STND-001 Trolley with wheels
€296,69 Add to cart -

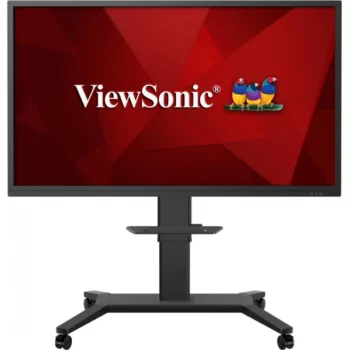

VB-STND-002 forklift motor
