Description
INTRODUCTION

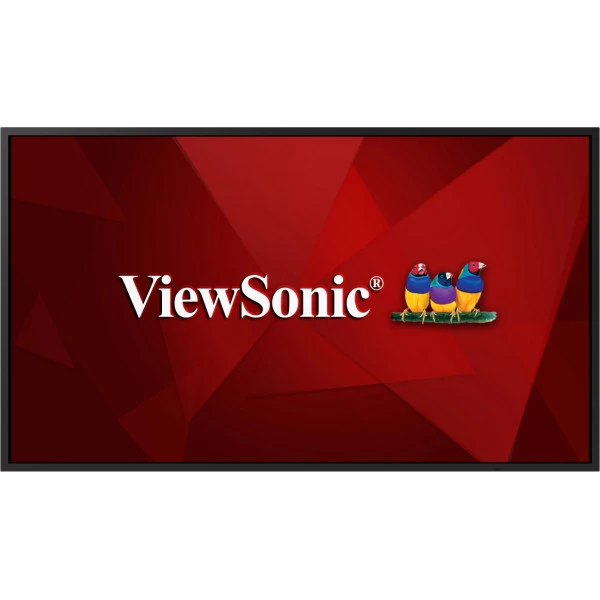

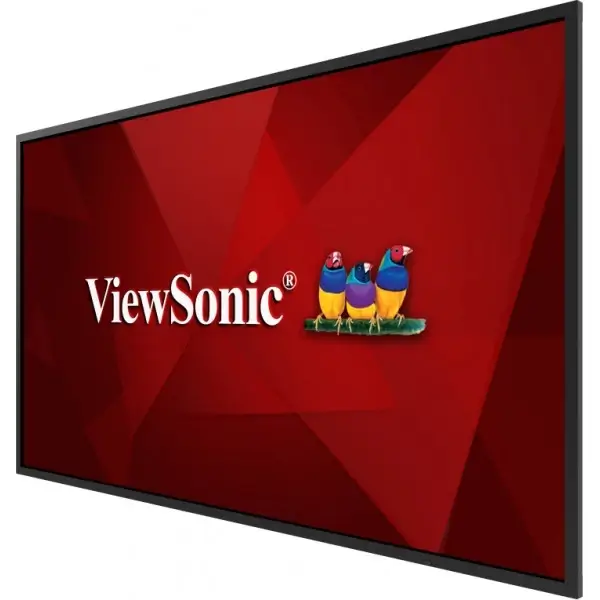

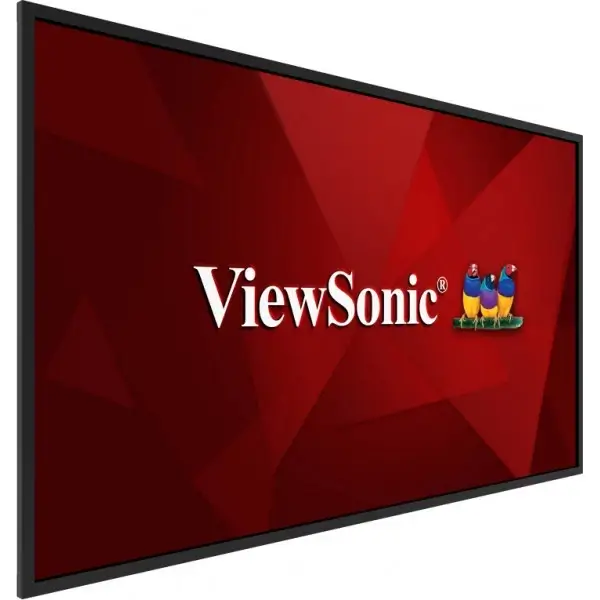

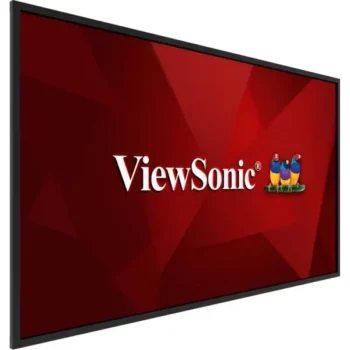

The ViewSonic® CDE4320 is a presentation screen wireless 43 inch with sharp edges and uniformeasy installation for enterprise environments, point of sale, home or hotels. With a built-in media player, the CDE4320 is able to easily playback high definition content via the USB port. The various connectivity options include 2 HDMI ports-IN, an entry RS232, SPDIF audio output and so on, The CDE4320 the edges for offers sharp, bright images to ensure perfect pictures and smooth playback of the content.
Frame and Chassis Uniforms and Purpose
With a border reduced and uniform of 1.3 cm, this presentation screen wireless delivers stunning images in a frame end.
Part the end of a 1.3-cm
Drive USB Photo, Music and Video
A powerful multimedia player multi-core allows the playback of photos, music, and video in just a few seconds with the help of a USB connection
Media player built-in USB
Multi-monitor Configuration easy
This screen is perfect for multi screens in hotels, restaurants, sports bars or retail outlets that require a deployment and presets customizable identical. With a home menu programmable via USB, each screen will have the same configuration by default, audio level, lock the front panel and the settings of the auto power on.
- Mode home
Management remote configuration
The software vController offers a simple and intuitive interface for remote management, the parameters related to the on-screen menu and the programming of content on the monitors deployed via the connectivity RS232 or LAN
Software configuration display vController™
Control multiple HDMI devices
With HDMI CEC functionality, remote control signals can be transmitted via HDMI cable to the HDMI devices connected. This allows you to directly control DVD players, audio systems and other devices out of the reach using the remote control of the screen.
Local control HDMI CEC
Screen
Screen size: 43″
Type/Tech: LCD TFT. Type-IPS, backlight DLED,
Display area (mm): 41.184 (H) x 529.416 (V) (42.51” diagonal)
Height/width ratio: 16:9
Native resolution: 3840 x 2160
Color: 1.07 Billion colors (10-Bit)
Brightness: 450 nits (typ.)
Contrast ratio: 1100:1 Typ.
Response time: 6ms
Angles of vision: H = 178, V = 178 typ.
Backlight life: 40,000 Hours Typ
Surface treatment: Anti-glare, hardness 2H Haze 3%
Edges: Purpose

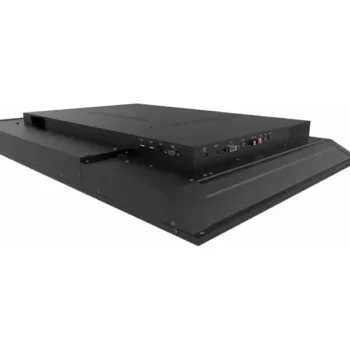

Orientation: landscapeINPUT
HDMI: x2
DVI: x1
Audio: x1 (3.5 mm)
RS-232: x1
IR Pass-Thru: x1OUTPUT
Audio: x1 (RCA)
SPDIF: x1 (Optical)
IR Pass-Thru: x1
LAN
RJ45: x1USB
Type: 2.0 Type A: x2 (USB playback)SPEAKERS
Speakers: 10Wx2COMPATIBILITY
RGB PC/HDMI PC: Up to 1920×1080@60Hz. Refer to the table of frequencies.
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DVI: 480i, 480p,720p,1080i,1080p
Android Version: Android 8.0POWER supply
Voltage: 100-240 VAC +/- 10% wide interval
Consumption: Normal 70 W, Max 85 WERGONOMICS
Wall mounting (VESA®): 400×200 mmOPERATING CONDITIONS
Temperature (º C): 0°to 40 ° C
Humidity: 20% ~ 80%, non-condensingDIMENSIONS (L x H x P)
Physical (inch/mm): 38.19 x 21.98 x 3.33 in/969.9 x 558.3 x 84.6 mm
Packaging (inch/mm): 42.13 x 26.10 x 6.02 in/1070 x 663 x 153 mmWEIGHT
Net (lb/kg): 10.5 kg / 23.1 lbs (without stand); 11.1 kg / 24.47 lbs (with stand )
Gross (lb/kg): 13.5 kg / 29.76 lbsREGULATIONS
SETTLEMENT: cULus, FCC, Energy Star, TUV Mexico city, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEEPACKAGE CONTENTS
PACKAGE CONTENTS: 1. Screen of wireless presentation CDE4320
2. Remote control with batteries
4. Quick start Guide
5. Power cable (1.8 mm)
6. HDMI cable (1.8 mm)
7. RS232 cable (1.8 m)
