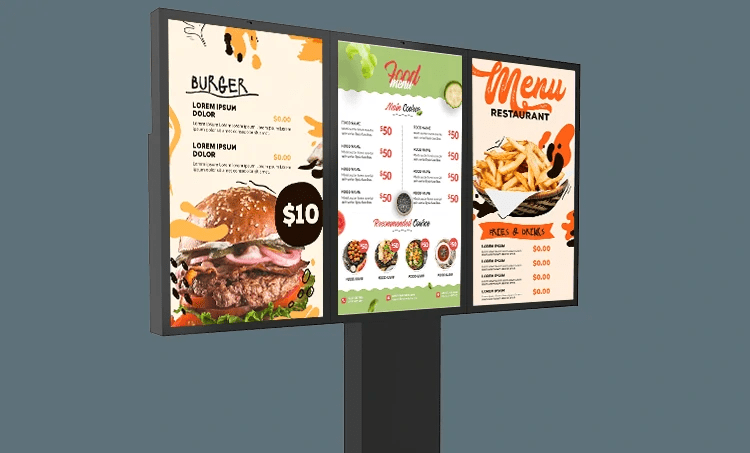

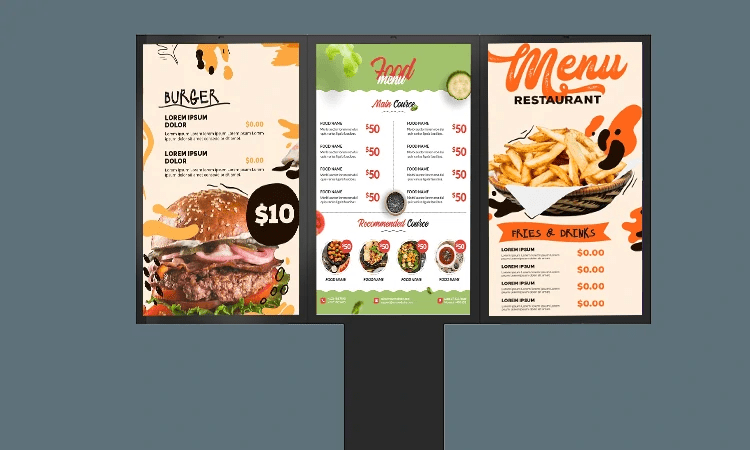

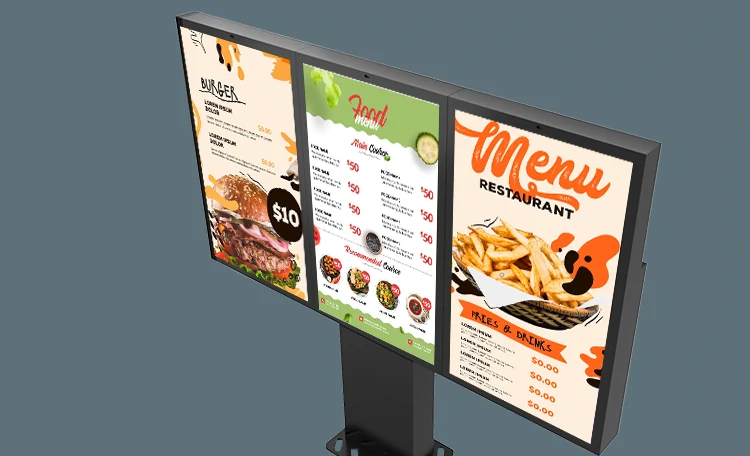

Kiosque 3 écrans / menu numériques extérieurs

Caractéristique Kiosque 3 écrans

Perfect for all types of advertising, display, restaurant menus, or even promotions in stores, ...

  •  Sizes : 32" 43" 49" 55" 65"
  •  Brightness : 2500 nits
  •  Resolution : 1920*1080
  •  Installation:Booth



You are interested ? then your wait is over !

“The display of the prices is not available, please contact us to make an estimate

SKU N/A Categories ,

Price exclusive of vat

This product is currently out of stock and unavailable.

Description

Description

Perfect for all types of advertising, display, restaurant menus, or even promotions in stores, ...

See the features

Kiosque 3 écrans numérique extérieurs

Protection IP66

Waterproof, anti-dust, anti-proof, photo-protection, anti-lightning, anti-shock, anti-corrosion, anti-theft

Kiosque 3 Écran ultra-clair FHD / gamme de couleurs 100 %

Une qualité d’image qui peut afficher des couleurs brillantes avec plus de précision, et s’adapter partout.

Support for multiple screens shared

Support split-screen mode through the software, backup, export-import

triple écrans qui prend en charge de plusieurs écrans partagés

Support split-screen mode through the software, backup, export-import

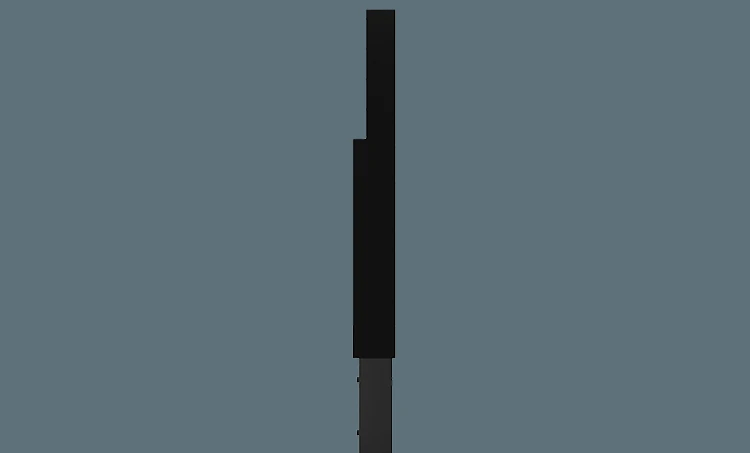

triple écrans extérieure ultra mince IP66

It is lighter, thinner and more elegant than the kiosks digital traditional.

Optical technology full

Adopt the technology of optical full, more energy-efficient and more elegant
as the traditional models.

Light sensor smart

Peut ajuster automatiquement la luminosité de l’écran LCD en fonction de la luminosité de la lumière externe, afin de réduire au maximum la consommation d’énergie.

LCD industrial grade

Adopt an LCD screen resistant to high temperatures thanks to the high-quality components,

– L’écran LCD peut fonctionner à une température maximale de 110 ℃,

– The finished product can operate at unetempérature maximum 70 ℃

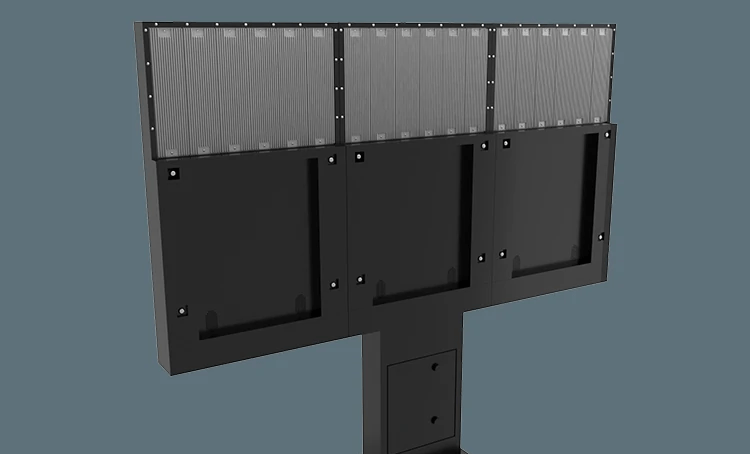

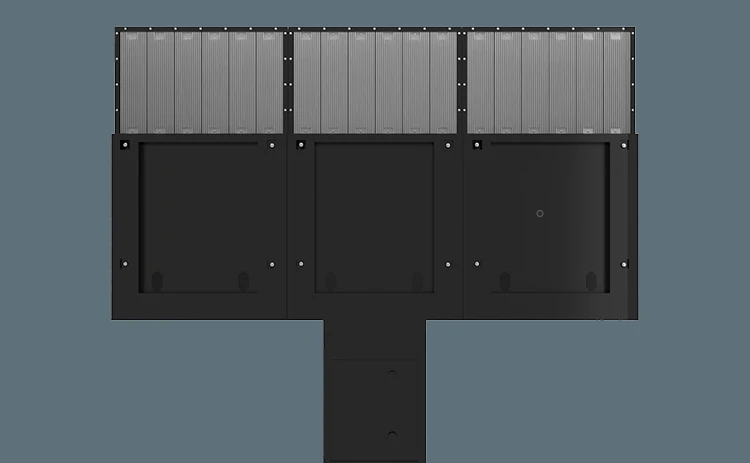

Conception sans ventilateur et sans filtre pour moins d’entretien

A housing without fan and without a filter helps you to reduce your maintenance costs

Cooling is ensured by metal plates.

Popular Applications

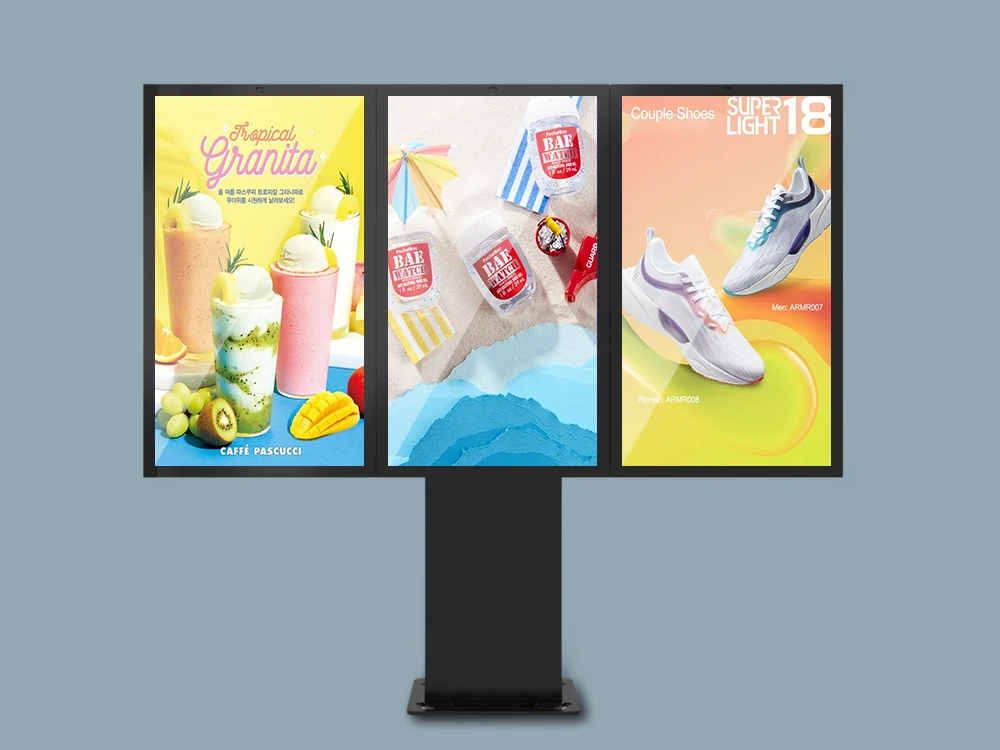

Totem 3 écrans extérieur
PanelDisplay size (inches)32"43″49"55"
Resolution

1920×1080

(16:9)

1920×1080

(16:9)

1920×1080

(16:9)

1920×1080

(16:9)

Active display area(mm)

700.5(H)

x394.8(V)

941(H)*530(V)

1073.5(H) x

603.0(V)

1209.6(H)x

680.4(V)

Aspect Ratio16:0916:0916:0916:09
Brightness(cd/m2)2000nit2500nit2500nit2500nit
Contrast ratio (Typ.)2000:1
Angle of view (H/V)178/178
Color16.7 M
Response time (G to G)6ms
Opening hours24/7
SoundSpeaker5W, 8Ω (2 games)
PowerTypeInternal
Current SourceAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power consumptionMax[W/h]130W180W260W300W
Standby Modeless than 0.5 W
Stopless than 0.5 W

Mechanical

Specification

Glass protectionGlass anti-reflection AR
Life of the housing8 years
IP rateIP66
Classification anti-hazardIK10
Media TypeWall / Ceiling / Freestanding
EnvironmentOperating temperature-30°C ~ 80°C
Storage temperature-30°C ~ 55°C
operating humidity10 % ~ 80 %
Storage humidity5% ~ 98%
Cooling systemTurboventilateur powerful and flow fan cross/air conditioning (optional)
ISMedia player AndroidProcessorRockchip® RK3288 (1.8 GHz, four cores)
RAM2G
GlowMEM 8G
USBHOST USB2.0 (X2)
local area networkEthernet 10M/100M (screen network version only)
External memory8gb SD card (up to 32gb)
MultimediaVideo (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image files (JPG, GIF, BMP, PNG)
Resolution media1920*1080
Wi-fiEthernet 802.11 b/g/n (screen network version only)
System operatorAndroid 7.1
CertificateSecurityTHIS
AccessoriesIncludedScheduling software, Remote control, Key, power Cable, SD Card, wall mount
Quality Assurance1 year
Type of packagingCardboard box/box with honeycomb + wooden crate

Additional information

Size

32", 43", 49", 55", 65"
