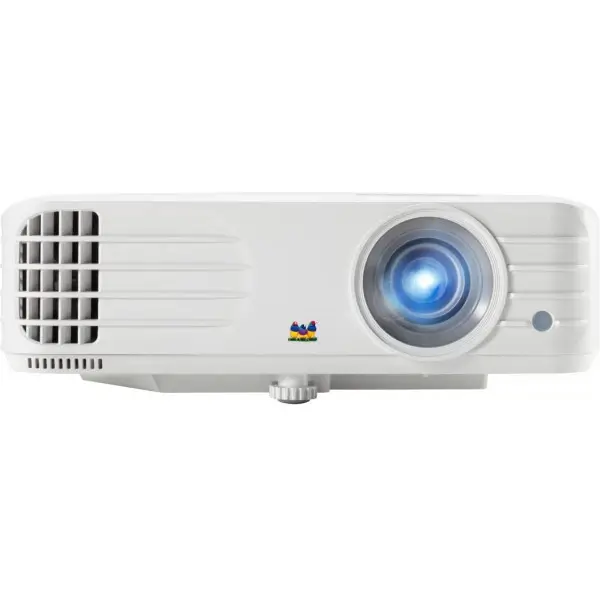

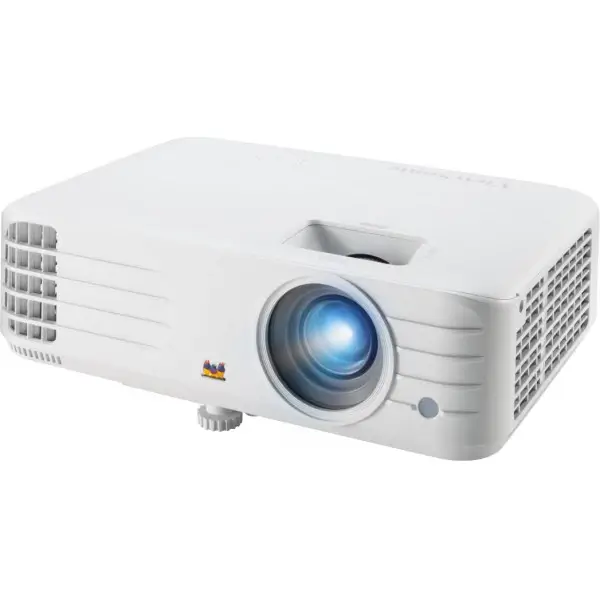

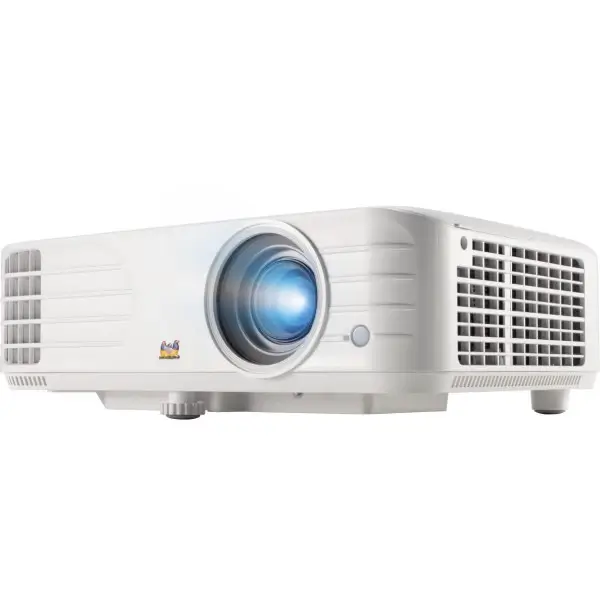

PX701HD – Projecteur 1080p 3.500 Lumens


Projector ViewSonic 1080p 3 500 ANSI Lumens for leisure or professional use

  • 3 500 ANSI Lumens with a native resolution Full HD 1080p
  • Mode power-saving SmartEco+ a lifetime of the lamp up to 20 000 h
  • Lens shift vertical lens
  • Function vColorTuner to facilitate the exchange of color profiles and adjustments
  • Technology SuperColor™



Price exclusive of vat



The PX701HD ViewSonic is a projector 3 500 ANSI Lumens with a resolution Full HD 1080p that presents visual performance, impressive in a living room or meeting room very bright.

This projector is equipped with the latest technology to lamp to prolong its life by up to 20 000 hours mode and SuperEco+, which effectively reduces the cost of replacement and maintenance of the lamp.
The lens shift lens digital allows users of theadjust using the remote control.
It is also compatible with the feature vColorTuner for the exchange of color profiles and adjustments.
The two power inputs HDMI and USB allow users to connect to multiple multimedia devices for games and movies, or a security key for wireless a wireless presentation.

Sharp and clear images throughout

Its brightness 3 500 lumens ANSI and its high contrast ratio of 12 000:1 ensure that images are clear in all environments, even in spaces equipped with ambient lighting important.

3 500 ANSI Lumens

Resolution 1080p Full HD

qualité 1080p
La technologie exclusive SuperColor™

More vivid colors

The exclusive technology SuperColor™ ViewSonic offers a wide range of colours to ensure a projection of color-ultra real in dark environments and bright, without affecting the quality of the image.

Technology SuperColor™

[Low total cost of ownership]

Mode energy-saving SuperEco+ for a period of lamp life up to 20,000 hours

The mode and SuperEco+, equipped with the latest technologies aimed at improving the life of the lamp, extending the life of the PX701HD of 15 000 to 20 000 hours of use with an input signal.

  • Mode And SuperEco+: If the projector has not received an input signal for 5 minutes, projected images are obscured by 40 %, which allows to extend the life of the lamp is 20 000 hours on average, thus providing a reliable use in the long term.

20 000 hours of use

correction de l'image par la télécommande

[Ease of use]

Flexibility in the projection of the image

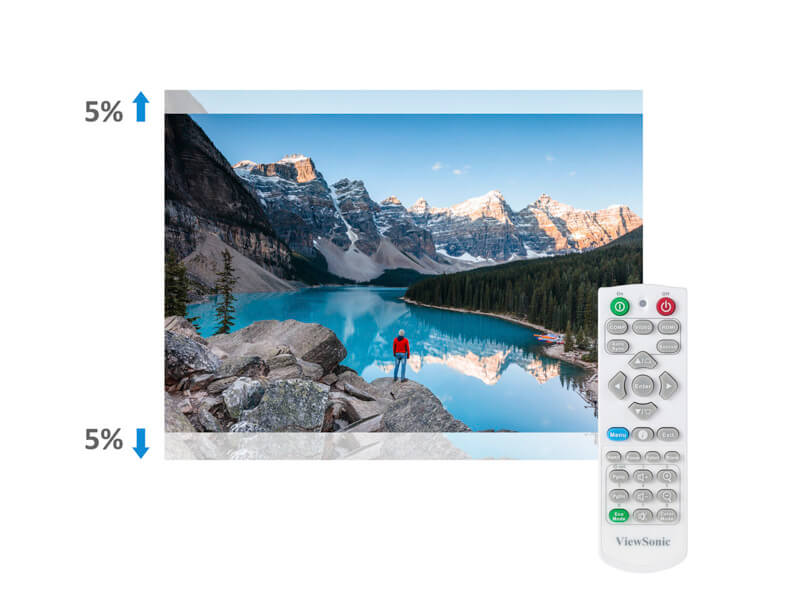

The PX701HD allows for adjustment of theimage vertical flexible to 10 %, so that users can move the image up or down without distorting it through the remote control, which facilitates and accelerates the installation process.

Lens Shift vertical lens

Customization of the color profiles for use with vColorTuner

Through the exchange of color profiles based on the cloud, users can create their own color profile that matches their preferences and share with other people.
In addition, users can download different profiles from their projectors, and set them as their own.


personnalisation des couleurs
préférences utilisateurs

User Modes customized according to your color preferences

Apart from the display mode ViewSonic default, two user modes additional support has been added to allow users to save their preferred settings. Total 7 color modes can be saved.

User Modes custom

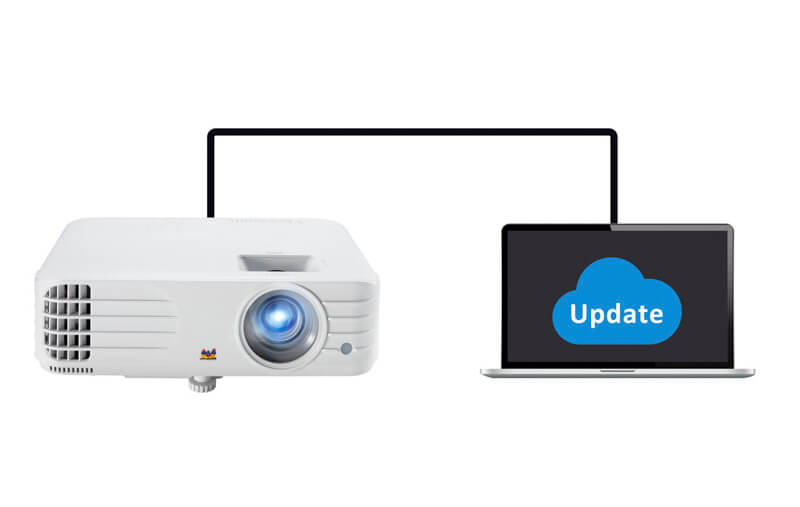

An easier way to update the software of the projector

The software update of the projector ViewSonic is available online and enables you to maintain easily the firmware of your projector up to date ; you don't need to bring your projector to an after-sales service for the software updates.

Software update of the projector

Source d’alimentation intégrée

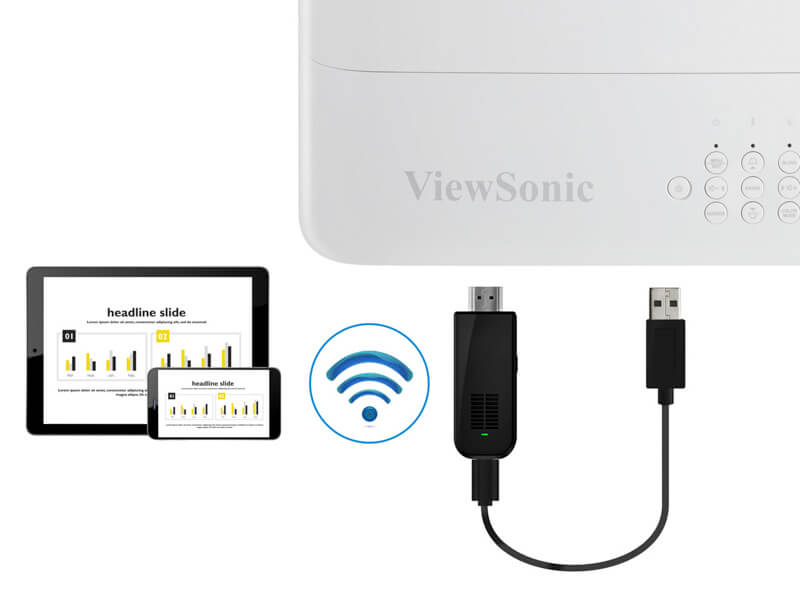

Power Source built-in

It is possible to use the output of a power supply built in USB 5 V/1.5 A to power the security keys HDMI wirelessthis eliminates the need for power adapters separated at the time of the reading in streaming your favorite media contents.

USB power

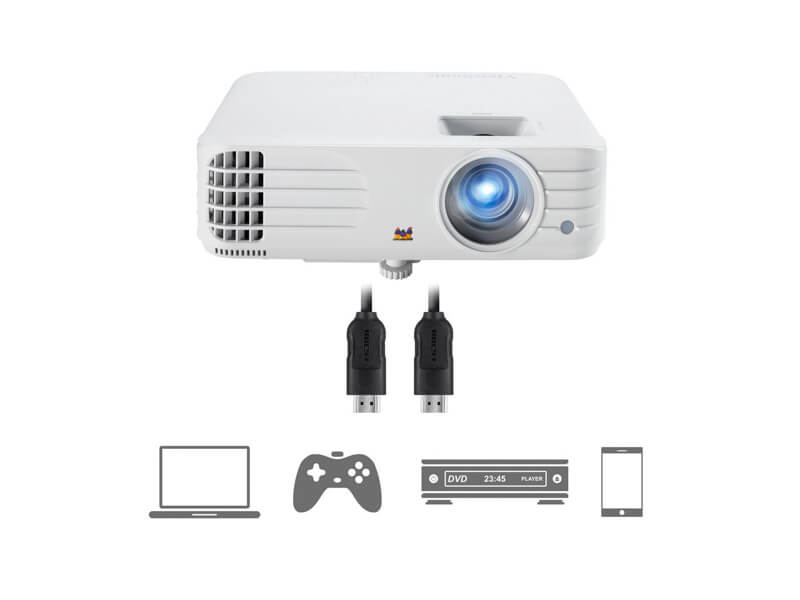

Extended connectivity

Two HDMI ports provide sufficient connectivity to your devices multimedia HDMIin order to provide an experience of the big screen at any time.


Double HDMI
Blu-Ray 3D

View immersive 3D

The PX701HD lets you view the3D imaging from readers 3D Blu-Ray and devices that support HDMI such as laptops, tablets, and media players via HDMI connection.

3D Blu-Ray HDMI

Its powerful

The PX701HD is equipped with a speaker more powerful, providing audio performance immersive.

Speaker 10 W

Son puissant 10W

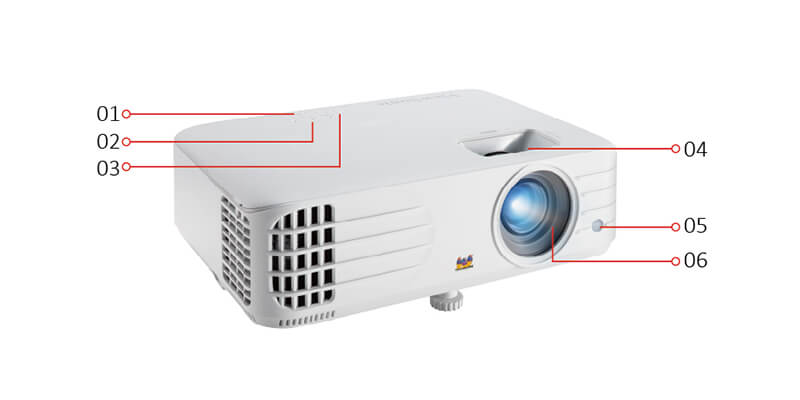

  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Security lock
  5. Zoom/Focus
  6. Front IR
  7. Projection Lens
  8. Audio in/out
  9. HDMI
  10. Dual VGA
  11. VGA out
  12. Mini USB
  13. Video
  14. Kensington® Lock Slot
  15. RS232

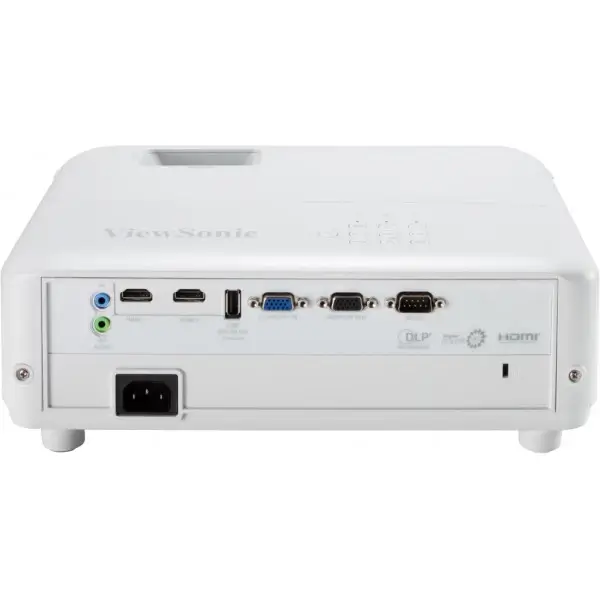

Connecteurs postérieurs
  • Features
    Native resolution: 1920 x 1080
    Type DMD: DC3
    Brightness: 3500 ANSI Lumens
    Contrast with mode and SuperEco: 12000:1
    Display color: 1.07 billion colors
    Type of light source: Lamp
    Lifespan of the lighting source (Regular): 5000
    Lifespan of the lighting source (SuperEco): 20000
    Lamp power: 203 W
    Lens: F = 2.0~2.05, f = 15,843 mm~17,445 mm
    Position of projection: 110 % +/- 6 %
    Ratio of the focal length: 1,5-1,65
    Image size: 30 – 300 inches.
    Focal length: 1 m~10,96 m (100" to 3.32 m)
    Base: +/-40° (V)
    Lens Shift lens V.: Yes (+/- 5 %)
    Optical Zoom: 1.1 x
    Digital Zoom: 0.8 x ~ 2.0 x
    Audible noise (Normal): 31 dB
    Audible noise (Eco): 27 dB
    Input offset: 16 ms
    Supported resolution: VGA (640 x 480) to WUXGA_RB (1920 x 1200)
    *Signal suppression reduces
    Compatibility HDTV: 480 i, 480 p, 576 i, 576 p, 720 p, 1 080 i, 1 080 p
    Video compatibility: NTSC, PAL, SECAM
    Horizontal frequency: 15 K~102 KHz
    Vertical scanning frequency: 23~120 Hz
  • Input
    Computer input (shared with component): 1
    Audio input (3.5 mm): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
  • Output
    Monitor output: 1
    Audio output (3.5 mm): 1
    Speaker: 10W
    USB type A (Power supply): 1 (5 V/1.5 A)
